1200TVL HD 1/3 CMOS IR-CUT OSD Color Camera Board

1200TVL HD 1/3 CMOS IR-CUT OSD Color Camera Board



Condition:New
Model:HS-138-38T
Warranty 1 Years !



*  Color camera board
*  The overall excellent performance, image quality is clear and bright
*  Size: (L*W*H)38〜38〜13mm

Description:

Sensor

1/3" SONY 138+FH8520 CMOS color camera board

Signals System

PAL

NTSC

Total Pixels

PAL:1312(H)x1069(V)

NTSC:1312(H)x1069(V)

Effective Pixels

PAL:1280(H)x1024(V)

NTSC:1280(H)x1024(V)

Minimum illumination

0.1 LUX / F1.2

Horizontal Resolution

1200TVL

Scanning frequency

50Hz 60Hz

Gamma value

0.45

Electronic Shutter

1/50~ 1/100000s

1/60~1/100000s

SNR

>46dB

video output

1.0V p-p

Operating Temperature

-20 º C to 50 º C

Operating humidity

Relative humidity is lower than 95 %

Power

DC12V (\10%)



OSD:
Image 3D On/Off
Exposure mode Global Exposure / Center-weighted / center weighted metering / BLC / light compensation money / Features Exposure
White balance PRO/TEMPORA/AI/GW/CCT
Image enhancement Sharpen Details sharpening Auto/Manual
Edge sharpening Auto/Manual
Contrast Gain mapping / auto / manual
saturability Auto/Manual
mirror On/Off
Reversion On/Off
Reference brightness 0-250
Digital AMP 0-5
Day & Night Auto / external trigger / color / black and white
Regional Shield Color Mosaic / white / yellow / blue / green / magenta / red / blue / black
area 0-7
Motion detection Sensitivity High / medium / low / weak
area 0-3
Video starnard PAL/NTSC
Language Chinese/English



1200TVL HD 1/3 CMOS IR-CUT OSD Color Camera Board

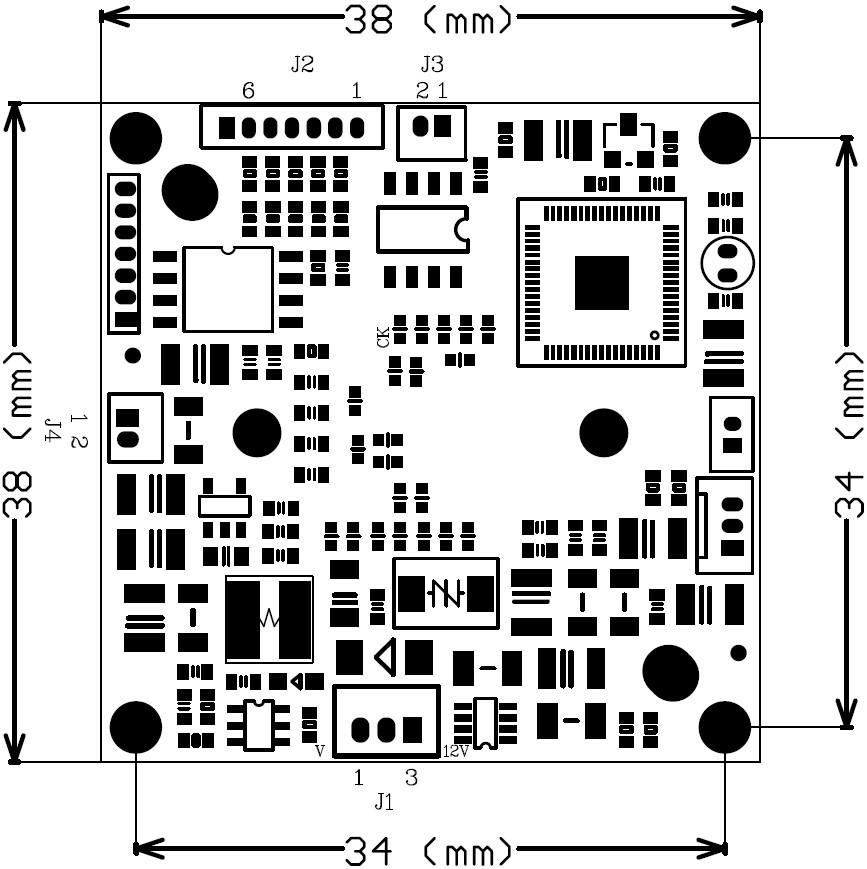

Size: ( Unit: mm /0.3mm )

J1 J2 J3 J4
P1 VIDEO P1 GND P1 IR-CUT1 P1 CDS
P2 GND P2 MENU P2 IR-CUT2 P2 GND
P3 DC12V P3 RIGHT
P4 DOWN
P5 LEFT
P6 UP
  Congeneric Products
Sony FCB-EV7100 Full HD WDR Camera Module With 10x Zoom Wide Angle Lens
Sony FCB-EV7100 Full HD WDR Camera Module With 10x Zoom Wide Angle Lens

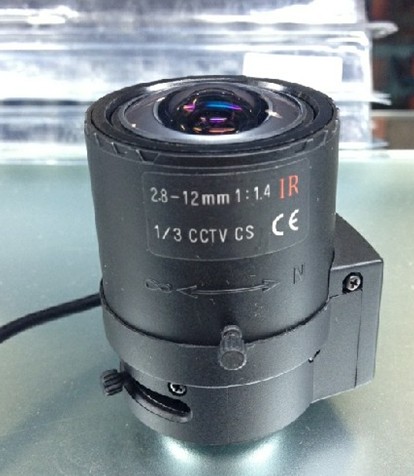

2.8-12mm Automatic Aperture CS Zoom Lens For CCTV Camera
2.8-12mm Automatic Aperture CS Zoom Lens For CCTV Camera

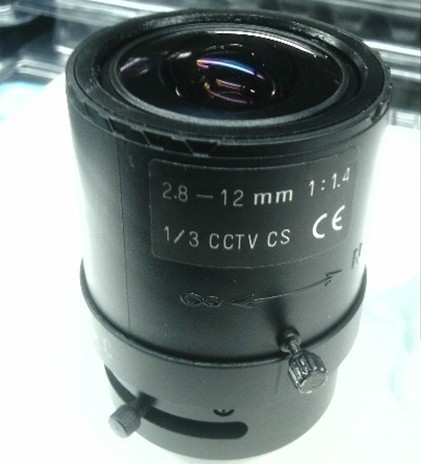

2.8-12MM Manual Aperture Zoom Lens For CCTV Camera
