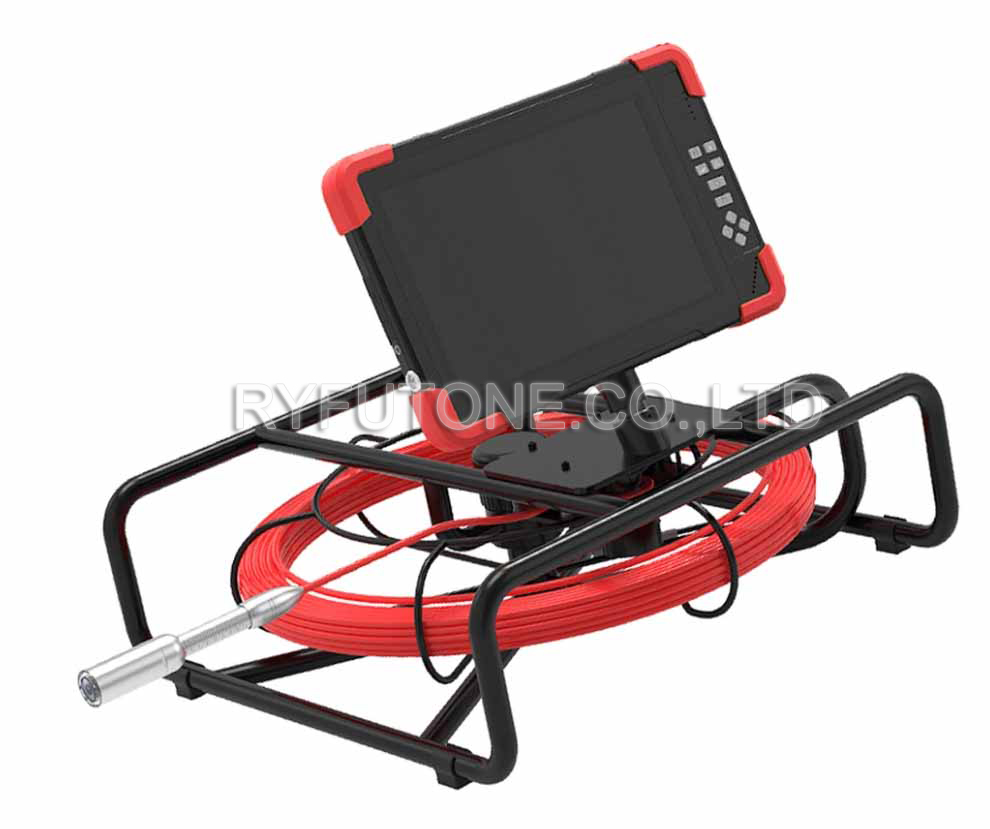

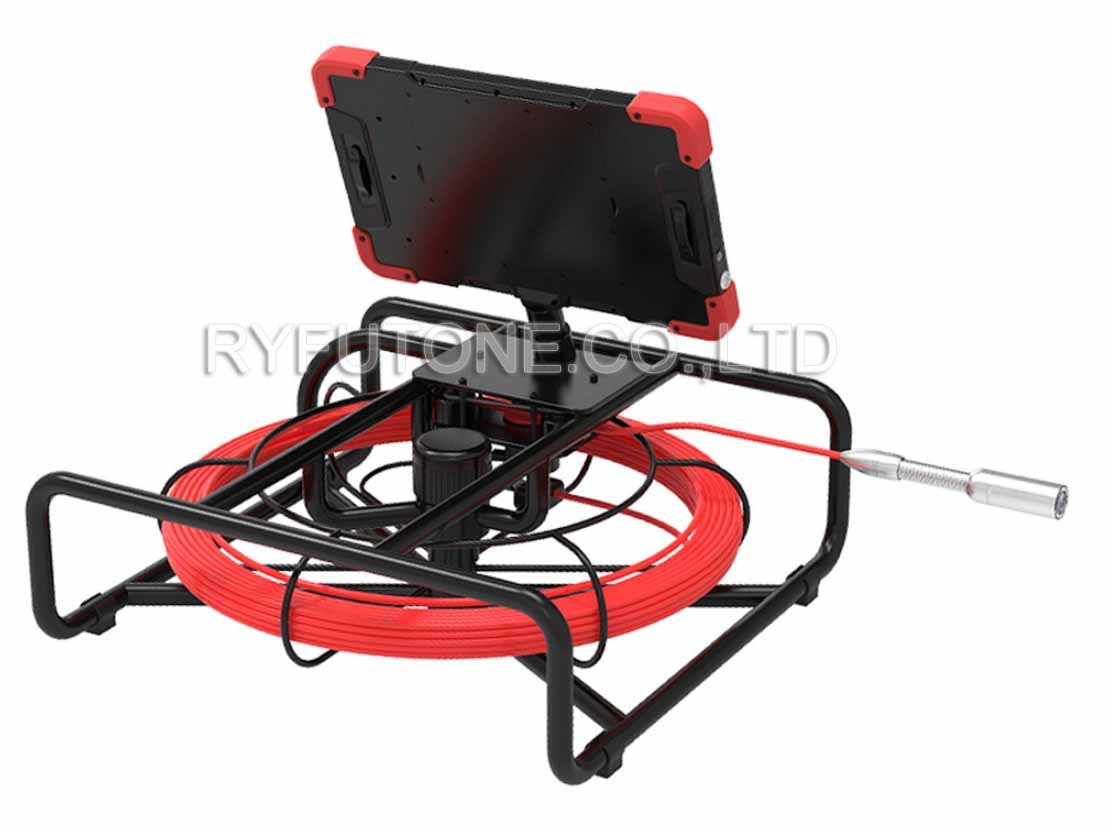

4MP Pipeline/Sewer Inspection Camera System with 10-inch Monitor
For Professional Full-Dimension Drainage Network Inspection Solution
4MP high-definition pipeline inspection camera system,23mm 316 stainless steel protective casing and 30M high-strength flexible push rod
Features:
1. Military-grade protection, long-lasting durability
* 316 stainless steel probe (23mm diameter): Corrosion-resistant, acid and alkali-resistant, suitable for harsh environments such as sewage and chemical pipelines
* IP68 waterproof rating: Fully submersible, capable of underwater detection up to 10 meters deep
* Shock-resistant and impact-resistant: The housing has passed a 1.5-meter drop test to ensure reliability in field operations
2. 4MP ultra-clear imaging, no detail missed
* 4-megapixel HD camera: Supports 2560¡Á1440 resolution, accurately identifying cracks, blockages, and root intrusions
* 120¡ã wide-angle lens: Wide field of view coverage, reducing inspection blind spots
* 6 adjustable LED infrared lights: Smart fill-light system, adaptable to dark and turbid water environments
3. 30-meter fiberglass cable
* Electronic distance measurement: Real-time display of probe depth (accuracy ¡À1cm)
4. Intelligent diagnostic system
* Real-time video/photo: Supports defect marking, generates inspection reports with GPS location
* WiFi wireless transmission: Remote monitoring via tablet/phone (distance ¡Ü50m)
* 512GB storage expansion: Massive storage for long-duration operation data (standard 128GB included)
Specifications:
* Camera 4MP CMOS, 120¡ã wide-angle
* Protection rating IP68 (316 stainless steel housing)
* Push rod length 1m/section, up to 30M
* Lighting system 6LED infrared (0Lux full darkness visibility)
* Storage Supports 512GB TF card (standard 128GB)
* Battery life 8 hours (replaceable battery design)
Applications:
* Municipal drainage: Rainwater pipes, sewage network sediment inspection
* Industrial pipelines: Internal corrosion inspection of chemical plant and power plant pressure pipes
* Property maintenance: Underground pipeline blockage location in communities
* Emergency rescue: Damage assessment of pipes in landslide-affected areas
Camera
Effective resolution
4.0 Mega Pixel, 2560*1440px
Video output format
AHD
Video Frane Rate
PAL: 1080P@25FPS, NTSC:1080P@30fps

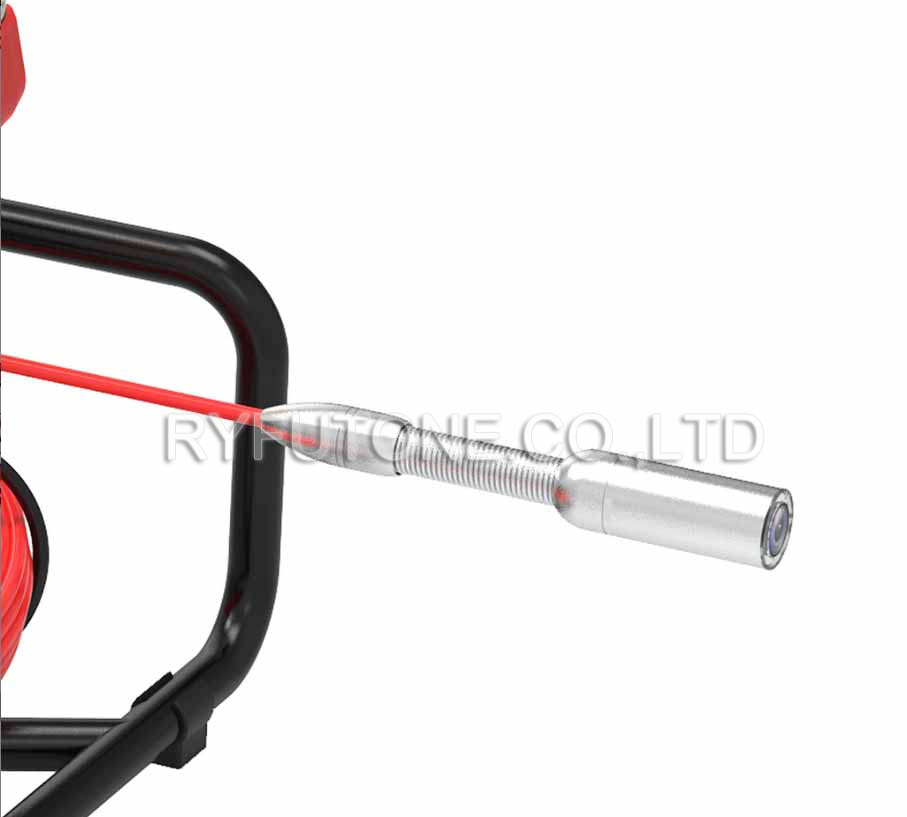

Camera Dimension
ø23mm*57mm
total length with spring: 133mm
Light source
12 LED
Camera Housing
316L stainless steel, sapphire glass
Lens View angle
180¡ã
Light source
12 LEDS
Brightness of the LEDS
Controllable via monitor
Cable
Length
30m(optional)
Material
Glass fiber cable
Diameter
7.5mm (optional)

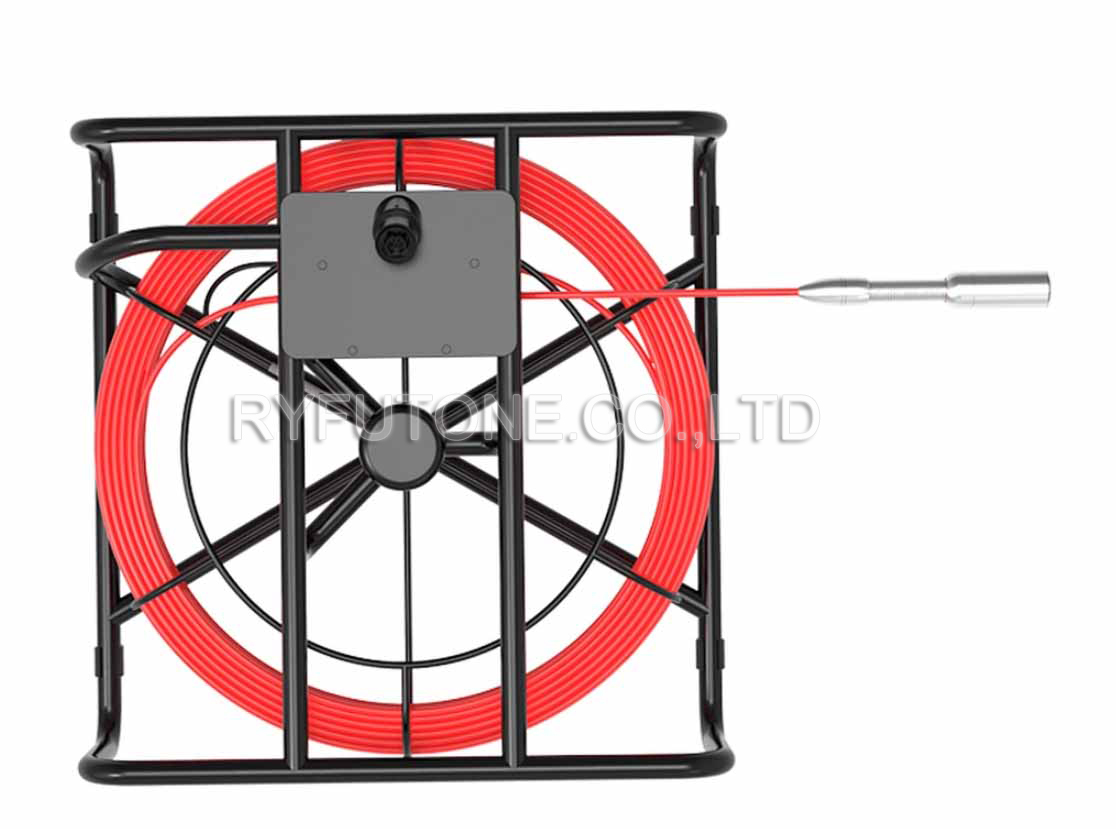

Cable Reel
Size
L*W*H=42*42*20cm
Brake
With Brake
Recording Monitor
Display
10.1 inch
Screen Resolution
1280*800 px
Touch screen
capacitive touch
Video recording
2K(4:3): 2560x1944
2K(16:9): 2560x1440
Video input
AHD
Video format
MP4
12MP,8MP,4MP,2MP (JPG)
Video Output
HDMI 1080P
Compression mode
H. 264 video compression
Audio input/output
1.0Vp-p (20Hz-20KHz)
Speaker Output
1W
Camera LED Control
PWN
File System Support
FAT32
Memory card
TF card 2GB-256GB
Language
China, English, South Korea, Russia,
German, French, Ukrainianetc
