4MP Sewer Pipeline Camera System with 32mm Diameter Camera, 100m Push Rod Cable with Meter Counter for Industrial Pipeline Inspection
Cable Diameter:11mm ,Cable Lengh:100m default
This inspection camera is a professional sewer camera system designed for contractors and plumbers to work smarter, complete jobs faster, and provide a higher resolution display for viewing pipes.

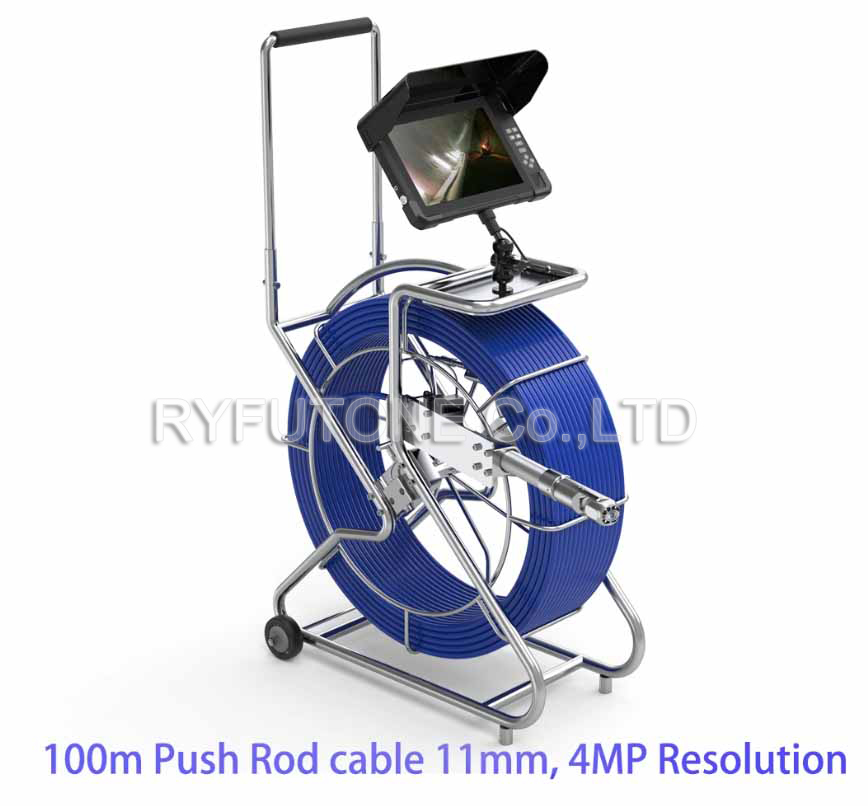

The push rod sewer camera is designed to inspect cracks in 40mm to 150mm or 200mm to 1000mm pipes for flow dynamics. It comes with a 100m push cable. The cable is reinforced with fiberglass, flexible enough to pass through sharp 90¡ă bends, yet stiff enough to push it over long distances.

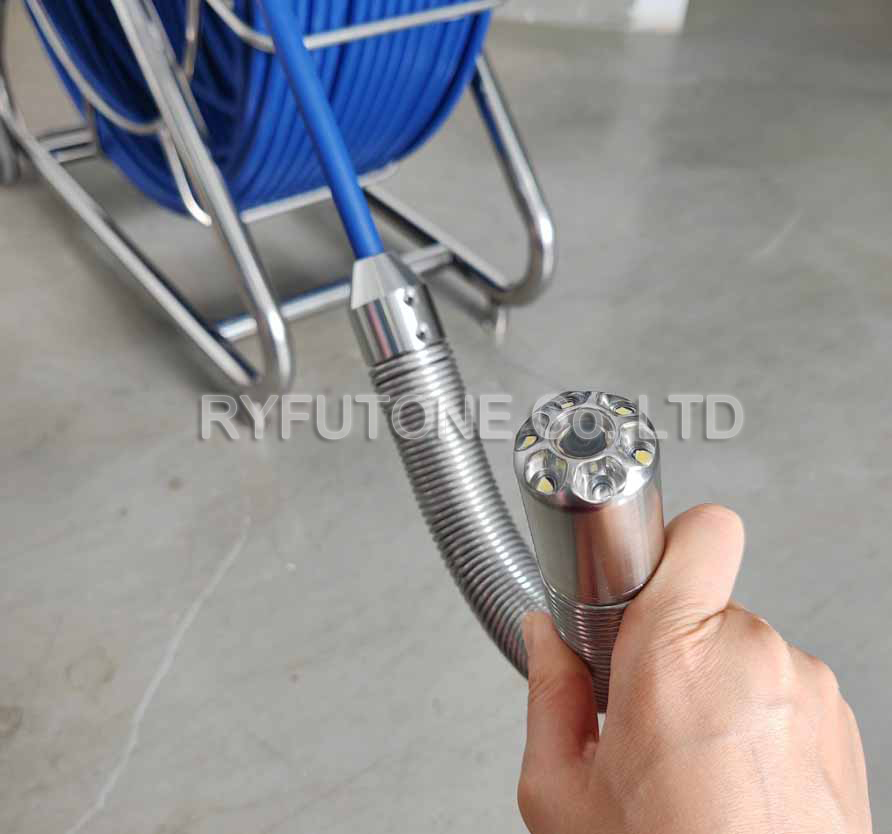

The camera includes a built-in 512Hz transmitter to help locate points within underground pipes, and a self-leveling camera head to keep images upright at all times. The HDR image sensor extends the camera¡¯s dynamic range, allowing clearer viewing in dark or bright pipes, such as stainless steel pipes.
Camera Specifications:
* 4MP Sony sensor resolution: 2560*1440px
* Field of view: 120¡ă
* Light source: 6 LEDs, brightness adjustable via monitor
* Cable reel material: stainless steel, with brake and meter counter
* Cable material: fiberglass, maximum 100m, diameter: 11.0mm

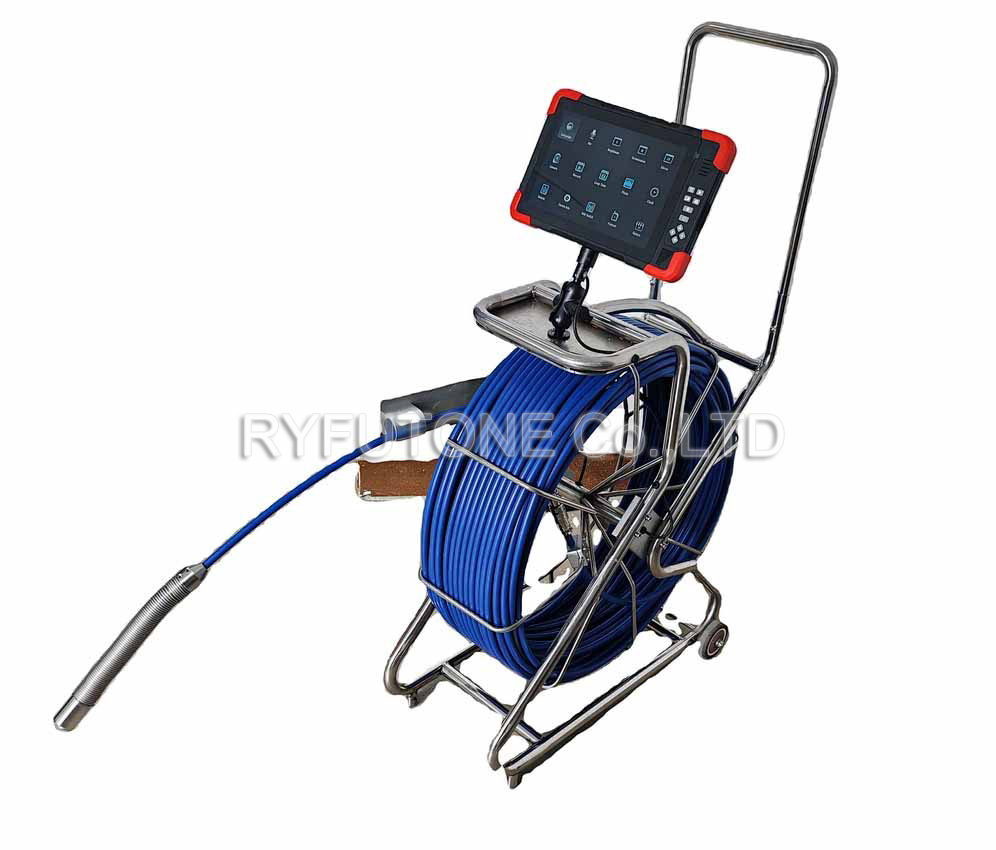

10.1-inch Touch Screen:
* Yellow movable rubber corner protectors
* 10.1-inch touch screen resolution: 1280*800PIX, IP66
* Video Input: HD 4K, 2K, 1080p, 720p, 480p AHD, CVBS video input
* Video Output: HDMI 1080p
* Supports 4K, 2K recording; 12MP photos and photo annotations.
* Supports 10x zoom, image flipping, internal keyboard photo editing, playback, and file locking with a password.
* Video Compression Format: H.264
* Maximum Storage: Up to 256GB TF card, default is 64GB
* Compressed video and audio are synchronized.
* 2*6200mAh interchangeable and removable Li-Battery
* Supports 12V output for the camera
* WiFi wireless transmission and viewing on a phone via an app
|
|
