Infrared Thermal Imaging Life Search Camera 360-Deg Audio & Video Life Detector

Infrared Thermal Imaging Life Search Camera 360-Deg Audio & Video Life Detector

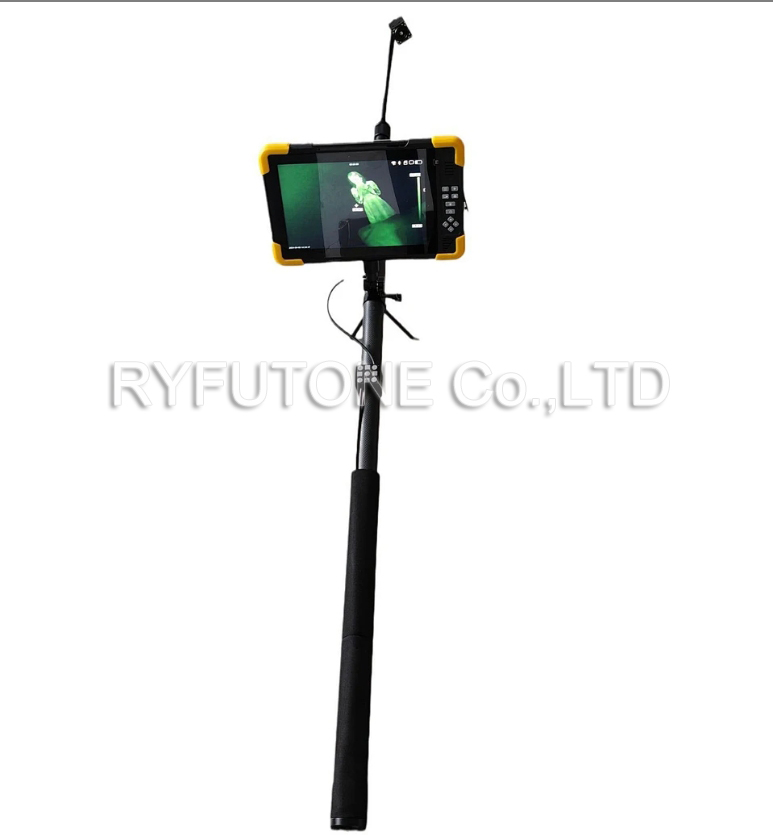

Infrared Thermal Imaging Life Search Camera with 5 M telescopic pole and a 7" or 10.1" recording Monitor.



Infrared Thermal Imaging Life Search Camera with 5 M telescopic pole and a 7" or 10.1" recording Monitor.

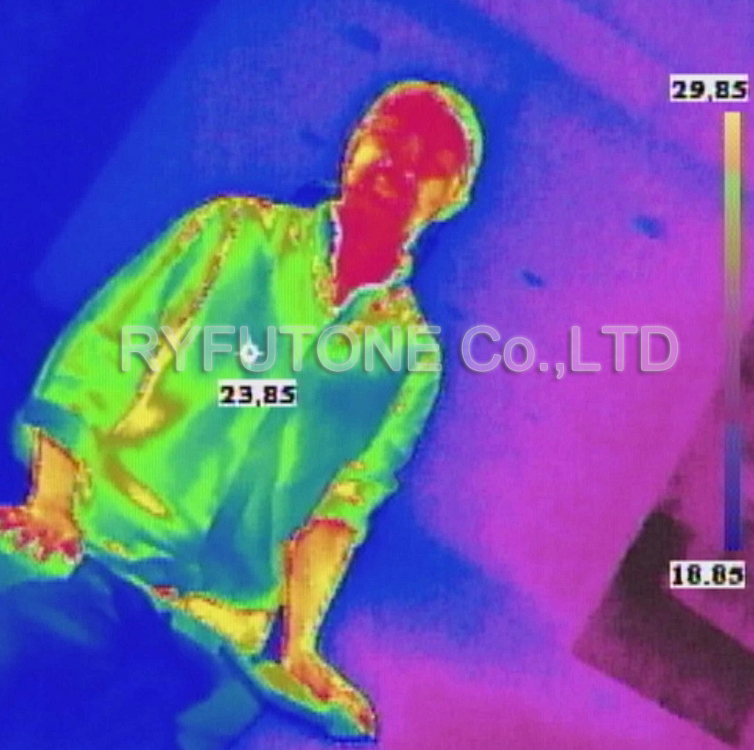

Heat Tracking and temperature shows.
It is equipped with a manual flexible probe that can be bent or angled 360¡ãfor objects in hard-to-access places.
Or you can choose the 360 Pan Tilt Camera.

Key Features:

1.High-Resolution Thermal Imaging Telescopic CCTV Camera
* Infrared Image Resolution: 256x192 pixels or 384*288 pixels, providing clear and detailed thermal images.
* Wavelength Coverage: 8-14um, ensuring accurate temperature detection.
* Temperature Range: 20¡ãC to 550¡ãC (-4¡ãF to 1022¡ãF), with a measurement accuracy of ¡À2¡ãC or ¡À2%.
2. Telescopic Pole
* Carbon Fiber Pole: Lightweight and durable, extending up to 5m (16.8ft) and collapsing to 1.38m (4.5ft).
* Weight: 2.2 kg (4.9 lbs), making it easy to carry and deploy.

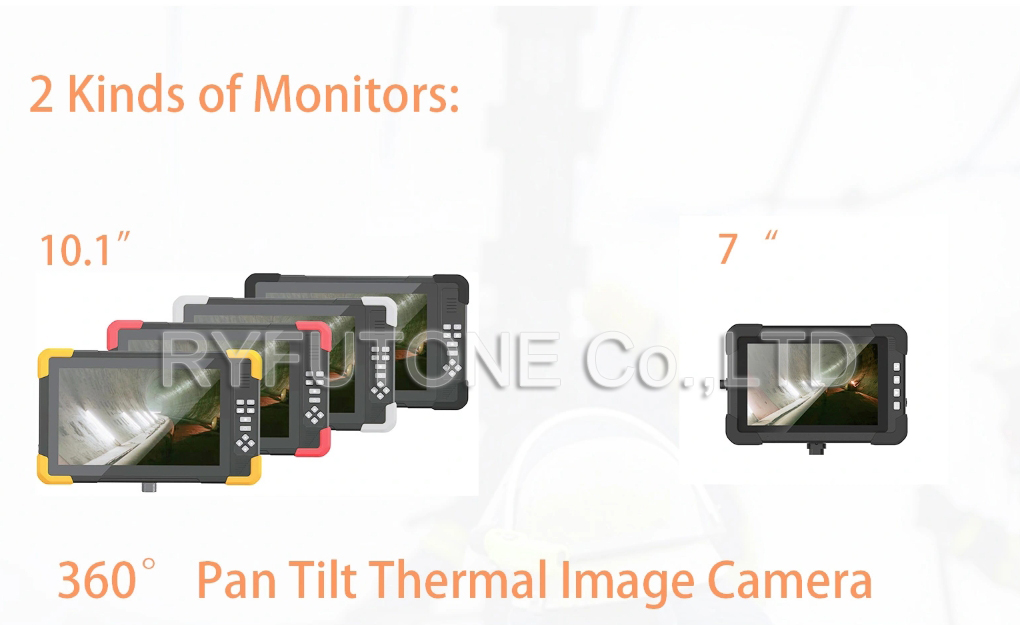

3. 7"or 10.1"Monitor with DVR
* High-Resolution Screen: 10.1 inch 1280 x 800 px, with a touch screen structure process.
* Recording and Photography: Supports 4K (3840x2160), 2K (2560x1944), and 1080p (1920x1080) video recording, as well as 12MP photo capture.
* Playback and Zoom: Features 10x zoom, image flip, and playback capabilities.
* HDMI Output: Connect to external monitors for larger viewing.
* Storage: Supports up to 256GB TF card, with a default 64GB card included.
* Battery Life: 6200mAh 48W Li-battery, providing over 4 hours of continuous use.
* WiFi Wireless Transmission: View and control the camera via a mobile app on smartphones or tablets.
* Rubber Protective Cover: Four corners are protected with removable rubber covers for added durability.
4. Applications of the Life Search Thermal Image Camera
* Search and Rescue: Quickly locate and assess situations in hard-to-reach areas.
* Industrial Inspections: Inspect pipelines, tanks, and other infrastructure with precision.

Specications:
Detector Polycrystalline Silicon Uncooled Focal Plane Array
Infrared image resolution 256*192/384*288px
Wavelength coverage 8¡ª14um
Lens/Field angle 4mm /F1.0 /   FOV  64¡ã*49¡ã
Temperature range 20¡æ to 550¡æ (-4¡ãF to 1022¡ãF)
control Temperature (-40¡ãC to 60¡ãC)
Temperature measurement accuracy ¡À2¡ãC or ¡À2%
Communication range about 300 cubic meter

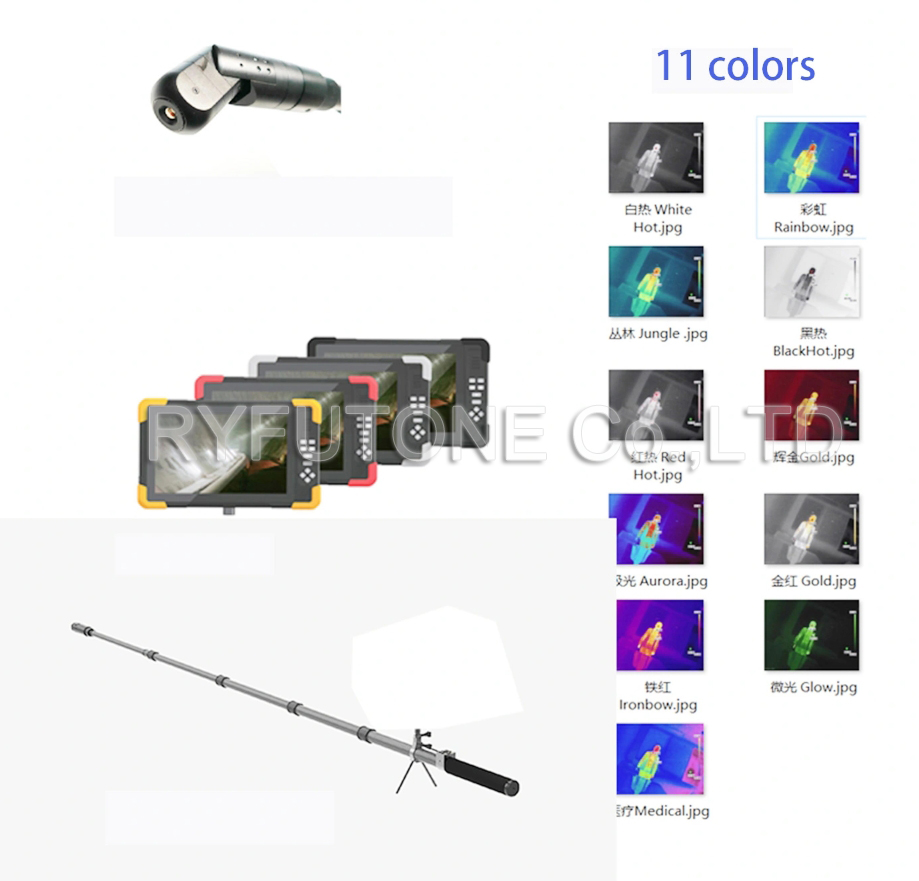

Color Palette White Hot
Gold
Ironbow
Rainbow
Glow
Aurora
Red Hot
Jungle
Medical
Black Hot
Gold-Red
Size 29*48mm
Light source 8 pcs LED
Heat tracking Support
7"/10.1“4K Touch Screen Recording Monitor
Display 10.1 inch /7 inch 1280 * 800 px
Touch screen structure process Capacitive touch
Video recording 4K(16:9): 3840x2160
2K(4:3): 2560x1944
2K(16:9): 2560x1440
 1080p(16:9): 1920X1080
Video input AHD 4k,2k,1080p,720p,cvbs
Video format MP4
Photo 12MP¡¢8MP¡¢4MP¡¢2MP
Video Output HDMI 1080P
Compression mode H. 264 video compression
Audio input/output 1.0Vp-p (20Hz-20KHz)
Speaker Output  1W
Memory card TF card  2GB-256GB
Language Varied
WiFi Protocol 802.11 a/b
WiFi Channel 2.4000-2.4835Ghz
WiFi power <16dBm
Power Supply DC 12V  2.5A
lithium battery 6200mAh( 48Wh)/7 inch 5000mAh
Complete working time 6-8 hours
Waterproof grade IP65
Screen size&weight L*W*H : 10.1" 30*19*1.8CM,865g/ 7" 211*141*28mm
