| 10.1¡°4K Touch Screen Recording Monitor |
| Display |
10.1 inch 1280 * 800 px |
| Touch screen structure process |
Capacitive touch |
| Video recording |
4K(16:9): 3840x2160 |
| 2K(4:3): 2560x1944 |
| 2K(16:9): 2560x1440 |
| 1080p(16:9): 1920X1080@25 /30fps |
| Video input |
4K 25fps,4K 30fps,2K 25fps, 2K 30fps,1080P 25fps,1080P 30fps,720P 25fps, 720P 30fps,CVBS pal, CVBS ntsc |
| Video format |
MP4 |
| Photo |
12MP,8MP,4MP,2MP |
| Video Output |
HDMI 1080P |
| Compression mode |
H. 264 video compression |
| Audio input/output |
1.0Vp-p (20Hz-20KHz) |
| Speaker Output |
1W |
| Memory card |
TF card 2GB-256GB |
| Language |
Varied |
| WiFi Protocol |
802.11 a/b |
| WiFi Channel |
2.4000-2.4835Ghz |
| WiFi power |
<16dBm |
| Power Supply |
DC 12V 2.5A |
| lithium battery |
6200mAh( 48Wh) |
| Complete working time |
6-8 hours |
| Waterproof grade |
IP65 |
| Screen size&weight |
L*W*H 30*19*1.8CM,865g |
| Flexible Snake tube 23mm Intercom Camera |
| Sensor |
5MP Cmos 2560*1944 PX |
| light source |
12LED or ir850nm IR |
| Minimum illumination |
0.08Lux/F1.2 |
| Lens |
2.8mm F2.2 141.9¡ã |
| size and weight |
D:23mm*38mm, Flexible length:38mm |
| Camera housing material |
Black color Aluminum alloy |
| Flexible Snake tube 23mm waterproof Camera |
| Sensor |
5MP Cmos 2560*1944 PX |
| light source |
12LED or ir850nm IR |
| Minimum illumination |
0.08Lux/F1.2 |
| Lens |
2.8mm F2.2 141.9¡ã |
| size and weight |
D:23mm*49mm, Flexible length:38mm |
| Camera housing material |
Black color Aluminum alloy |
| Thermal Image Camera support Talkback |
| Detector |
Polycrystalline Silicon Uncooled Focal Plane Array |
| Infrared image resolution |
256*192px |
| Wavelength coverage |
8¡ª14um |
| Lens/Field angle |
4mm /F1.0 / FOV 64¡ã*49¡ã |
| Temperature range |
20¡æ to 550¡æ (-4¡ãF to 1022¡ãF) |
| control Temperature |
(-40¡ãC to 60¡ãC) |
| Temperature measurement accuracy |
¡À2¡ãC or ¡À2% |
| Communication range |
about 300 cubic meter |
| Color Palette |
White Hot/Gold/Ironbow/Rainbow/Glow/Aurora/Red Hot |
| Jungle/Medical/Black Hot/Gold-Red |
| Size |
29*48mm |
| Light source |
8 pcs LED |
| Heat tracking |
Support |
| 5MP 3405 deep water camera with 20m wires |
| Sensor |
5MP Cmos 2560*1944 PX |
| light source |
12LED or ir850nm IR |
| Minimum illumination |
0.08Lux/F1.2 |
| Lens |
2.8mm F2.2 141.9¡ã |
| size and weight |
D:34mm |
| Camera housing material |
316 stainless steel |
| Cable length |
20m 4.2mm |

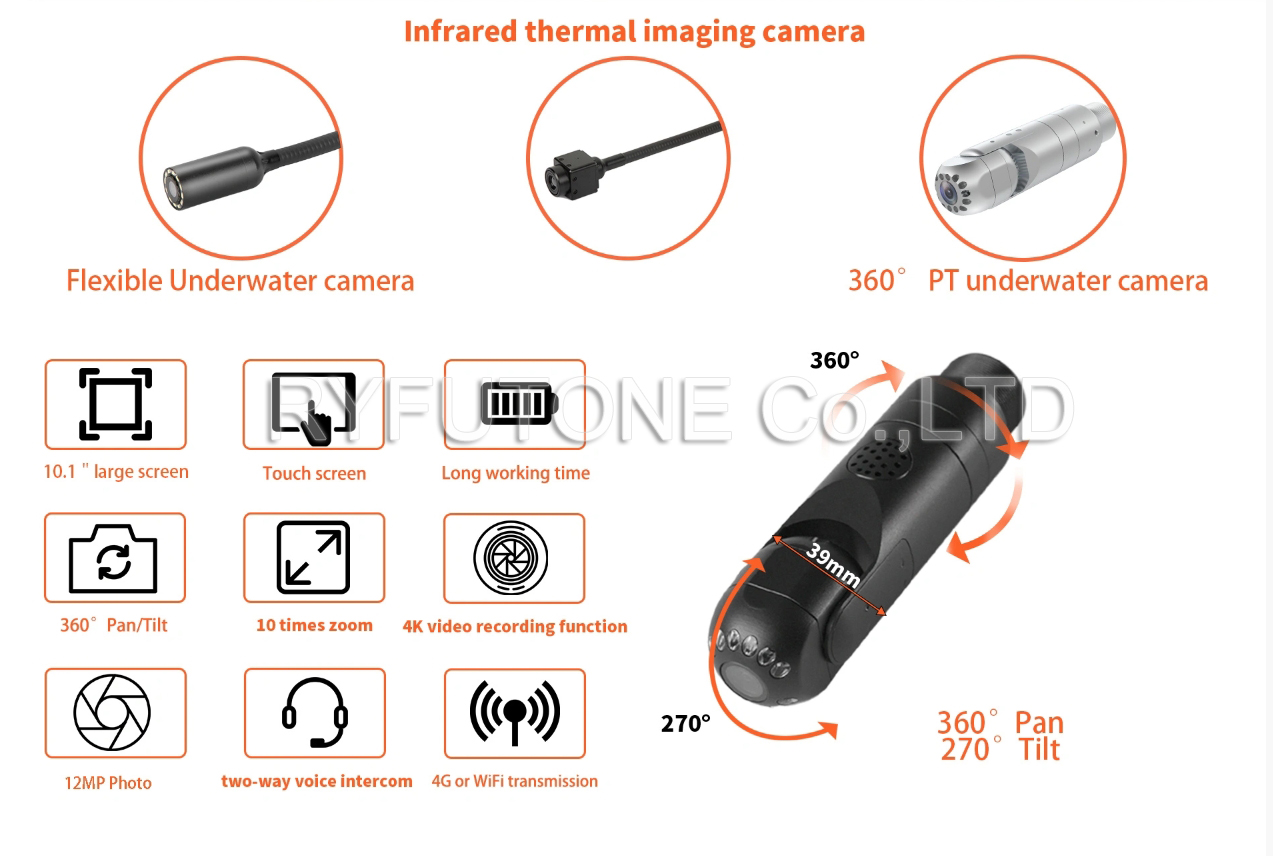

| 360 PT Talkback Camera |
| Sensor |
5MP Cmos 2560*1944 PX |
| light source |
12 LED or ir850nm IR led |
| Minimum illumination |
0.01Lux/F1.2 |
| Lens |
2.8mm F2.0 134.7¡ã |
| PTZ rotate |
Horizontal: 360 ¡ã circular; Vertical:270¡ã |
| size and weight |
D:39mm*57mm Rotation part£¬Total length£º153mm |
| Camera housing material |
Black color Aluminum alloy |
|
|
| 360 PT Talkback Thermal Image Camera |
| light source |
12 LED or ir850nm IR led |
| Minimum illumination |
0.01Lux/F1.2 |
| Lens |
2.8mm F2.0 134.7¡ã |
| PTZ rotate |
Horizontal: 360 ¡ã circular; Vertical:270¡ã |
| size and weight |
D:39mm*57mm Rotation part£¬Total length£º153mm |
| Camera housing material |
Black color Aluminum alloy |
| Detector |
Polycrystalline Silicon Uncooled Focal Plane Array |
| Infrared image resolution |
256*192px |
| Wavelength coverage |
8¡ª14um |
| Lens/Field angle |
4mm /F1.0 / FOV 64¡ã*49¡ã |
| Temperature range |
20¡æ to 550¡æ (-4¡ãF to 1022¡ãF) |
| control Temperature |
(-40¡ãC to 60¡ãC) |
| Temperature measurement accuracy |
¡À2¡ãC or ¡À2% |
| Communication range |
about 300 cubic meter |
| Color Palette |
White Hot/Gold/Ironbow/Rainbow/Glow/Aurora/Red Hot |
| Jungle/Medical/Black Hot/Gold-Red |
| Heat tracking |
Support |
| 360 PT LED Waterproof Camera( Cannot work work underwater for long time) |
| Sensor |
5MP Cmos 2560*1944 PX |
| light source |
12 LED or ir850nm IR led |
| Minimum illumination |
0.01Lux/F1.2 |
| Lens |
2.8mm F2.0 134.7¡ã |
| PTZ rotate |
Horizontal: 360 ¡ã circular; Vertical:270¡ã |
| size and weight |
D:39mm*57mm Rotation part£¬Total length£º153mm |
| Camera housing material |
Silver color Aluminum alloy |
| 8mm snake camera |
| Resolution |
1280*720P |
| light source |
8 pcs LED |
| Minimum illumination |
0.01Lux/F1.2 |
| View angle |
75 deg |
| camera diameter |
8mm |
| camera cable |
flexible gooseneck cable 3m |
| Carbon Fiber Telescopic Pole |
| Material |
Carbon Fiber |
| Unfold length |
5.15 meter/3.6m |
| Fold length |
1.38 meter/ 0.95m |

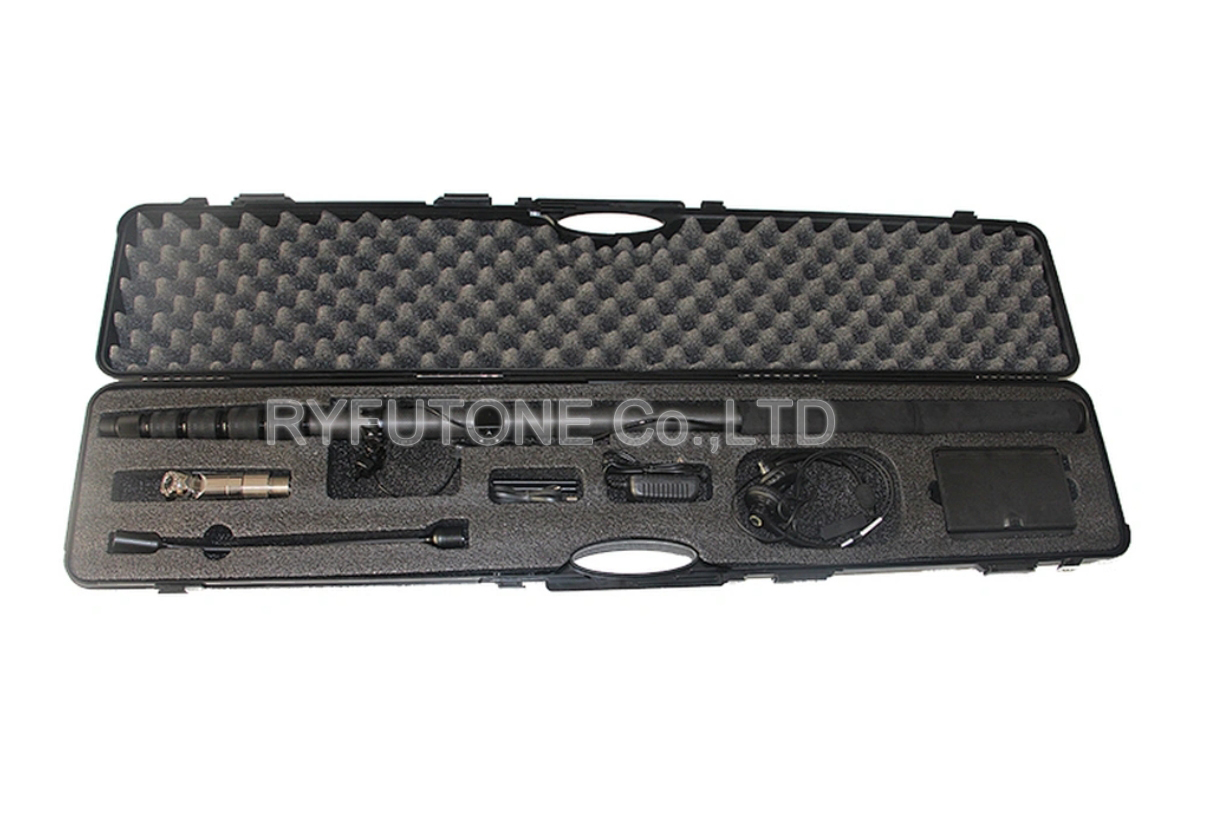

| package |
126*28*14/CM, G.W:10kg, N.G:5.8kg |
