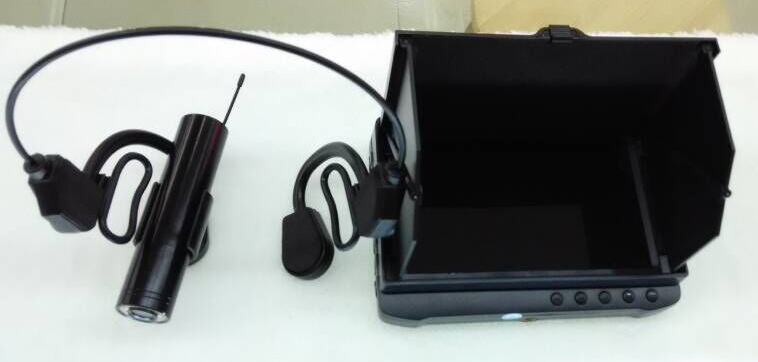

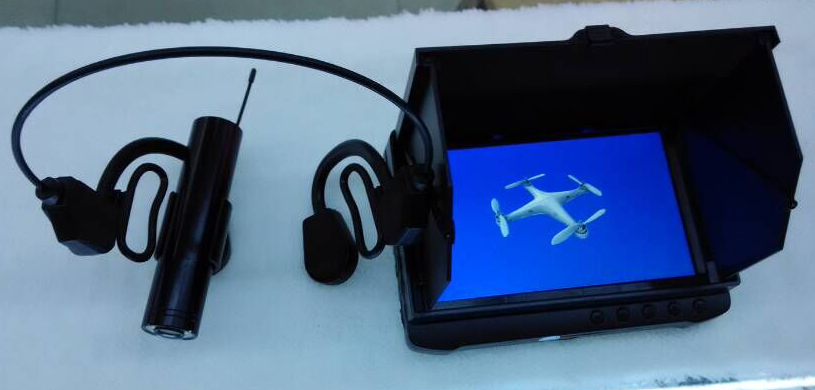

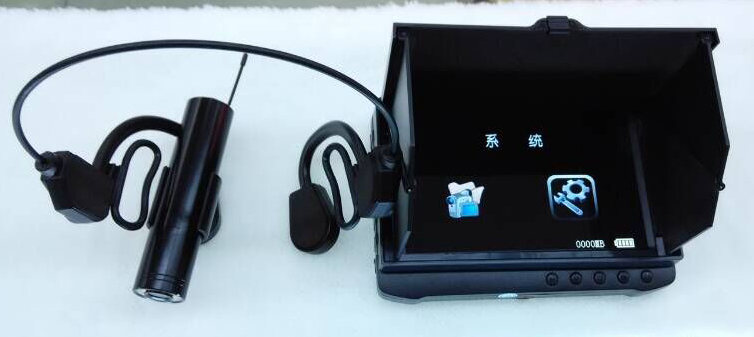

2.4GHz Wireless Head-mounted Mini Camera and 5inch Wireless FPV DVR Monitor With Sunshade Video Camera System
This portable Head-mounted wireless inspection camera is our company newly-developed simple and convenient inspection instrument. It's a new product combined the technology of electronics, optics and 2.4GHz wireless.
It can be used to inspect hard-to-reach, darkness, dangerous places,Police Wearing Video Camera , such as:
Auto engine and gearing inspection; Medical inspection, like dental, skin disease, gynecology, etc.; All kinds of pipe & tube, building inspection; Antiterrorism search & rescue; Safety inspection; Archeology; Police video system, etc.
Head-mounted Wireless Inspection Camera :
| Frequency |
General : 2414Mhz(CH1) Encrypted :2370Mhz (CH1) |
| RF Output Power |
10mW (300 feet in line of sight) |
| Total Pixels |
NTSC:720 X 480 PAL:720 X 576 |
| Horizontal Resolution |
480 TV line |
| Lens Focus |
1-100cm (adjustable) |
| View Angel |
62กใ |
| LED Brightness |
5000mcd |
| Minimum Illumination |
0Lux/F1.2 (LED;5 meters view) ;0.05Lux / F1.2(LED off) |
| Li-battery Capacity |
280MAH |
| Working Time |
1.2 hours |
| Charge Time |
1 hour |
| Voltage |
DC 5V |
| Current |
230MA |
| Weight |
30g |
| Size(DxL) |
1.95X8cm |
5inch Wireless DVR Monitor With Sunshade:
| Receiver |
2.4Ghz 8CHS
-88dB |
A1: 2414MHz; A2:2432MHz; A3: 2450MHz; A4:2468MHz.
A5:2490MHz; A6:2510MHz; A7: 2390MHz; A8:2370MHz |
| Antenna |
RF-SMA 4 Blade |
| Displayer |
Screen size |
5 inch LCD screen |
| Resolution |
800 X 480 Pixel |
| Contrast |
500:01:00 |
| Brightness |
350 cd/m2 |
| Recorder |
Storage |
TF card 1GB-32GB(optional) |
| Video compress |
MPEG-AVI 30fps |
| Language |
Multiple |
| AV IN |
TV system |
NTSC / PAL (for wired camera) |
| AV-OUT |
Output voltage |
3.6-4.2 V |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left:20MW + right 20mW[16O](suit to largest volume) |
| Speaker |
1W |
| HD 5-inch LCD Screen |
Active area |
108mm(W) x 64.8mm(H) |
| Resolution |
800 x 480 Pixel |
| Luminance for LCM |
200cd/M2 |
| Video |
Resolution |
720*576/720*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB (optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Votage |
DC 5V |
| Current(receiving mode) |
600MA |
| Current(recording mode) |
680MA |
| Current( recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200Mah |
| Standby time |
Wireless record |
>=9.5 hours(off-screen); |
| Wired record |
>=12 hours(off-screen); |
| Sunshade |
one button open |
Patend LCD hood |
| Size(LxWxH) |
Without sunshade |
131 x 90.5 x 18mm |
| Size(LxWxH) |
With sunshade |
131 x 90.5 x 28mm |
| Weight |
Without sunshade |
215G |
| Weight |
with sunshade |
260G |
Packages:
* DVR X 1PCS
* Camera 1 pcs
* User manual x1pcs
* Stereo earphone x1 pcs
* USB cable x1pcs
* Wearing x 1pcs
* AC adapter x1pcs
* Back holder for installation x1 pcs |
