30M Cable Night Vision Mini Underwater Fish Finder Camera And 5inch DVR

Main Features

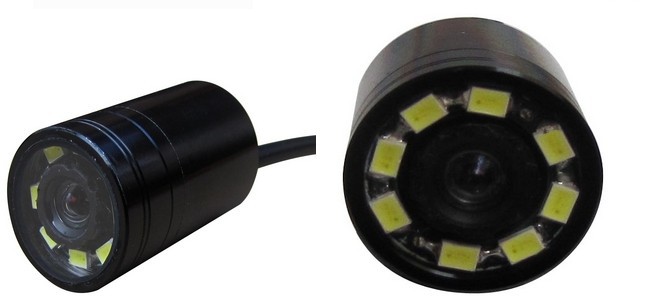

*  8 LEDs enable the effective night vision distance up to 5 meters;
*  High luminous flux (F1.2) and wide view angle (90°) mini lens;
*  Surveillance area up to 100 square meters in the complete darkness;

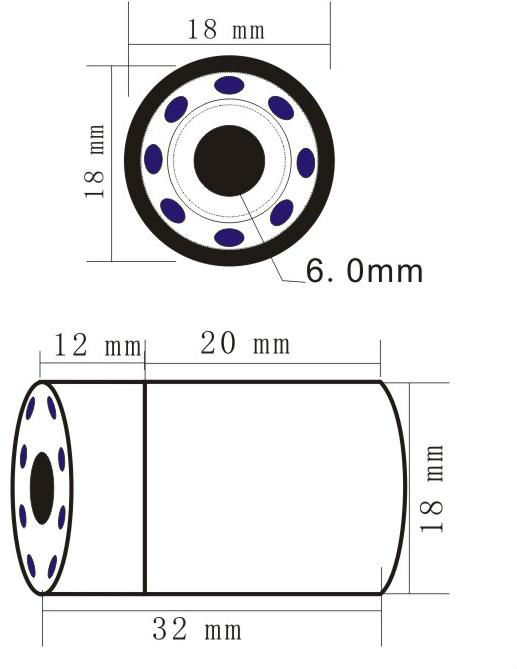

*  Small size, which is easy to install into narrow room and slim tube, etc.;
*  520TVL Digital chip synthesis technology offers true color & HD video;

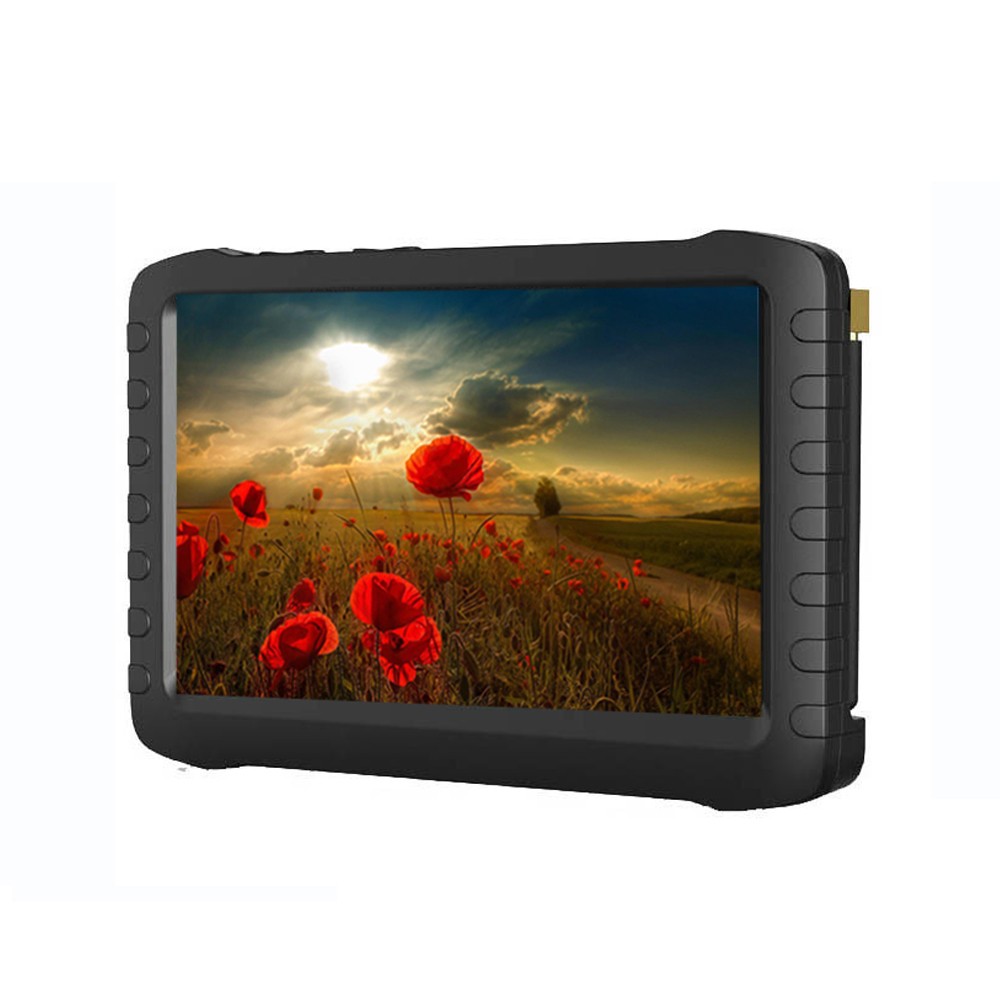

*  5" lcd HD monitor, support motion detect and loop recording, can take picture;
*  3200mAh battery for DVR, support 32GB card. (This DVR not including SD Card).

Camera's Specifications:

Specification
Pick up element	Single chip 1/4" CMOS
Number of Pixels	728(H)x576(V)
Signal System	PAL/NTSC
Sensor Dimension	3.584mm(H) x 2.688mm(V)
Horizontal	Approximately 520TV lines
Sensitivity	5M
Lens & View angle	0.5mm F1.2/90°
Lamp control	1:Light(Default) 2: On-Off 3:Self-Montion
LAMP	8LED : 17600mcd
Video Out	1.0V p-p/75ohm
Lamp Control Out	1:AV(Default) 2:On-Off 3:Photosensitive Resistor
Weight	Camera : 12G
Cable Length	0.5M (additional purchase for longer cable)
Work Current	DC5V: 70mA(Lamp Off)/260mA(Lamp On); DV12V: 30mA(Lamp Off)/100mA (Lamp On)
Power requirement	DC5V:(3.6-5V) DC12V:(3.6-24V)
Operating	-10c to +50c , Less than 90%RH
Connection	PIN1->Red DC5V PIN2->Black GND PIN3->Yellow VIDEO OUT PIN4->White LED Control

Items(DVR Specification )		Value
AV IN	TV System	NTSC/PAL
	Output Voltage	3.6-4.2V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/㎡
Video	Resolution	720*576 / 640*480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	≥9.5 hours(off-screen); ≥5hours(on-screen)
	Wired record	≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g

How to use:

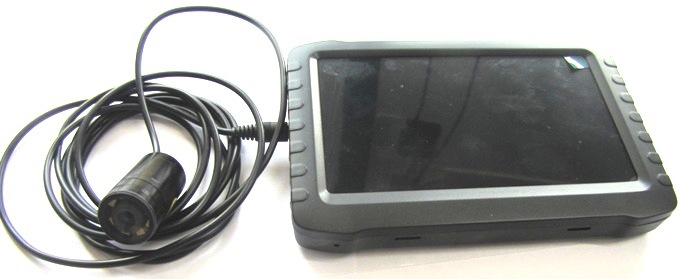

1) Connect camera and monitor
2)Open the monitor, then you can live watch video and record
Camera is powered by monitor, monitor is powered by built-in Li- battery

Package:

* Underwater camera with 30m cable x1
* 5inch LCD monitor X 1unit
* User manual X 1 PC
* Stereo earphone X 1unit
* USB Cable X1 PC
* AC adapter X1 unit
* Back holder for installation  X 1 pc
