Description:

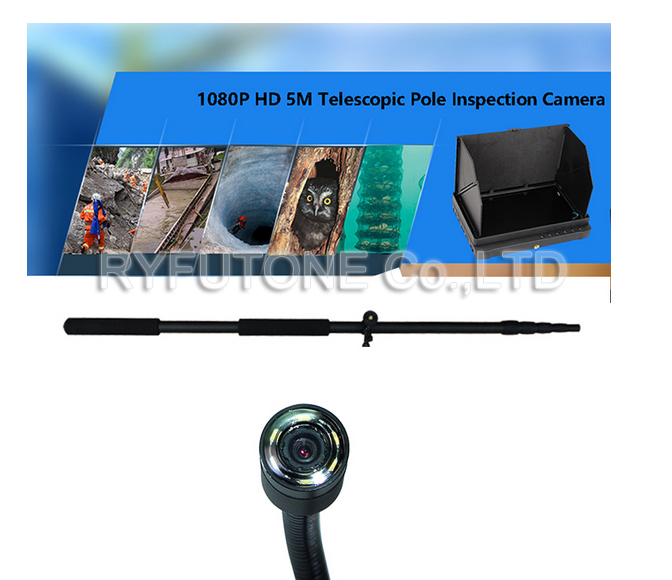

The latest MINIAM500 is a multifunctional FULL HD 1080P 5m Telescopic pole search-and-rescue inspection camera system .

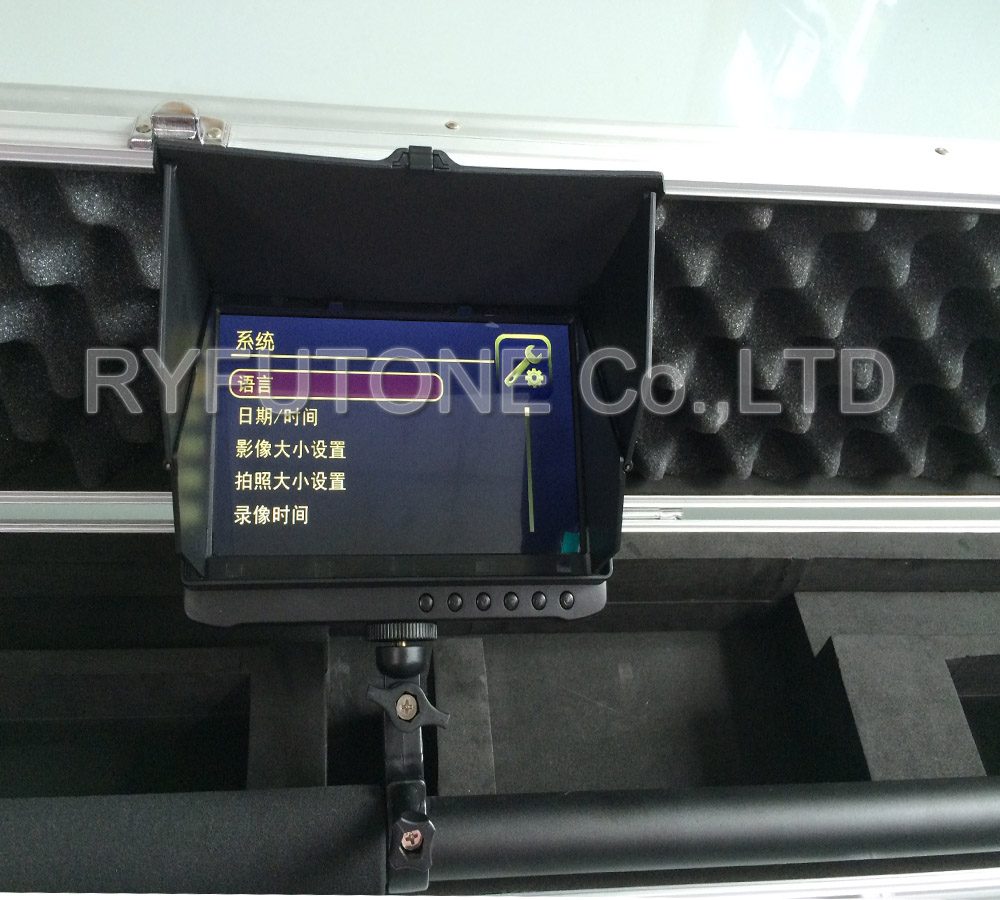

7" hd color LCD screen to display live feed at the same time.
Support 64GB SD card storage.
Support Photo, Video and Playback,no any delayed.Good photo and video as iphone.
One-button open style patented sunshade and 5000mAh battery+10hours working time to make sure long time rescue.
Waterproof Rate:IP68 , it still works in bad weather like rain,snow. Also you can use it underwater.
LEMO HDMI connector ,it is durable and won't fall off easily.

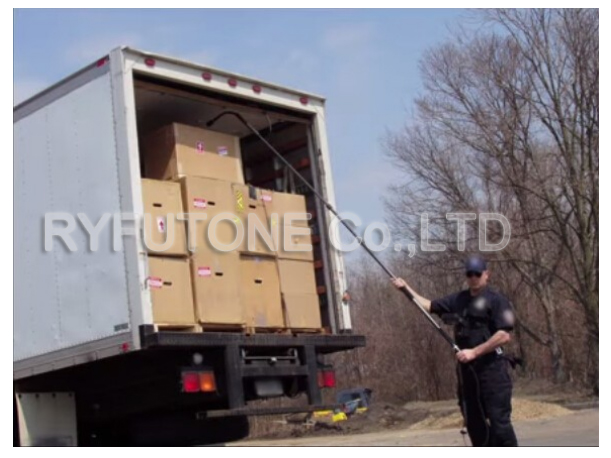

5 meters telescopic pole camera, extend your hands and eyes to every narrow corner to help to take photo or make video easily for the people in danger.
64GB memory, support long time record of rescure.
High light LED lamps can see clear as far as 2m ,bring the people in danger hope and brightness.

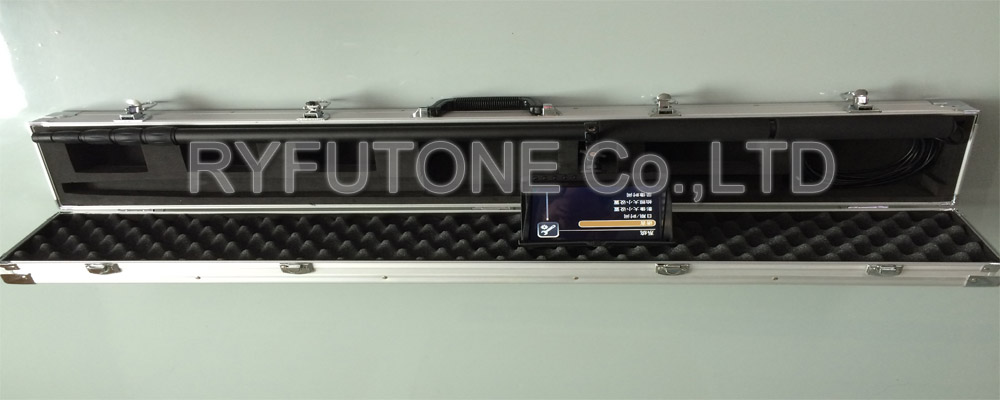

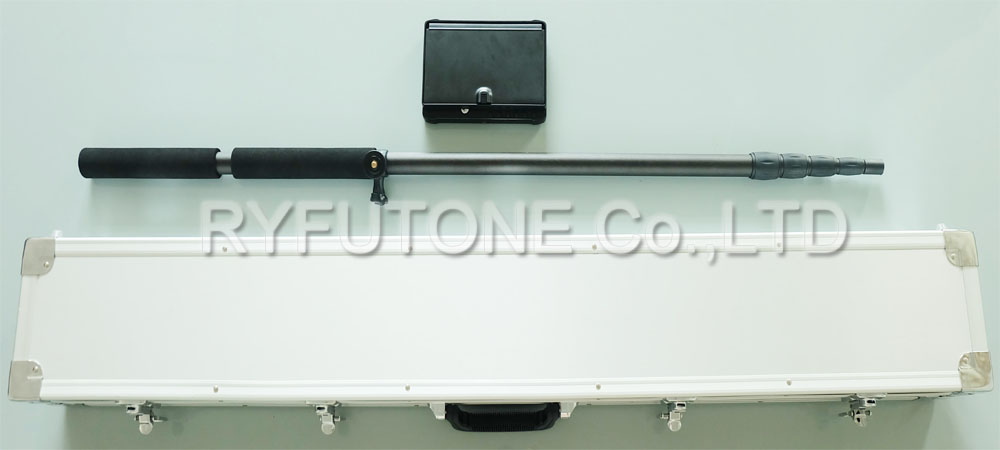

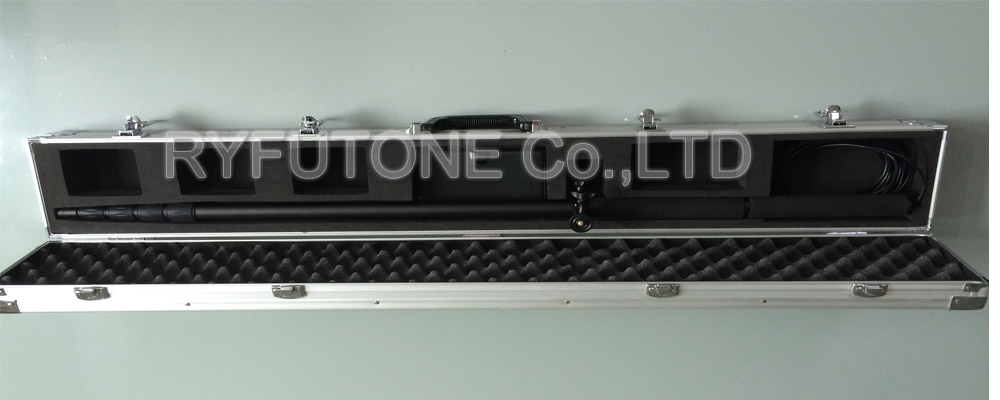

Pressure-proof aluminium alloy case good for carry and delivery.
Features:
* Multi-function 7" 1080P HD mini undersea inspection camera DVR system
* HD 1080P 5.0 Mega digital camera.

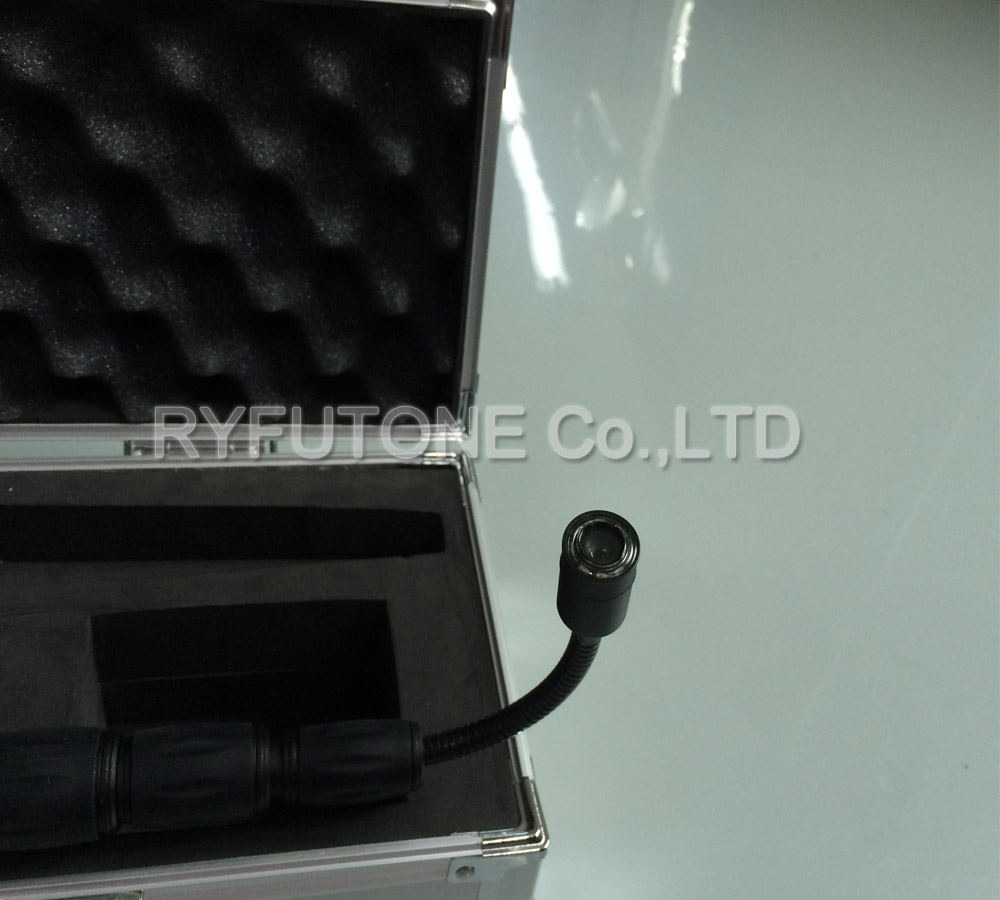

* ¦µ18mm mini camera with 6 IR/LED night vision.
* Waterproof Rate IP68.
* Support 64GB TF card.
* Support HDMI video output.
* Support H.264 Video Compression Format.
* 5000mah li-battery, 8 hours working time.
* 5m or 7.5m Telescopic Survey Pole for all-purpose usage.
* Top gradealuminum allay case .
Application:
* Underwater inspection or surveying of boats or structures
* Underwater Wildlife inspection
* Educational Pond dipping
* Live viewing for nature reserves
* Boat Hull | Propulsion systems Inspection
* Finding and recovering lost tools in the water!
* Harbour wall or Pontoon Inspections
* Used by Swimming clubs for Training
* Drains and sewers
* Conservation
* Roof or Gutter surveys
Specification:
| Mini camera |
Optical Element |
1/3 CMOS Sensor |
| Optical Total Pixels |
5.0 MP |
| CMOS Sensor Size |
5.07mm(H)¡Á3.38mm(V) |
| Sensitivity |
0.2Lux/F1.2 |
| Led lamp |
6pcs 8lm/pcs controlled on DVR |
| Lens & View angle |
0.5mm F1.2 90 ¡ã |
| HD Video Output Interface |
FPD-Link¢ó |
| Waterproof rate |
IP68 |
| Dimension |
18 x 28mm |
| Cable(5 Cores High-Speed Line) |
Diameter:3.5mm Length:6m |
| Pole style |
telescopic pole 5m or 7.5m |
| Pole length & Weight |
5m 0.9kg |
|
7" inch DVR
Monitor |
HD Video Output |
HDMI:1920* 1080;1280*720 |
| Video Storage Pixels(16:9) |
HDMI:1920* 1080;1280*720 |
| Video Compression Format |
H.264 |
| Video Storage |
AVI |
| HD Digital Video Input Interface |
FPD-Link¢ó |
| Audio Frequency Range |
20HZ-20KHz AAC |
| Audio Compression Format |
AAC |
| Photo Format |
JPG 5.0 Mega :3200(H)¡Á1800(V) |
| Storage External SD card |
TF card 1GB-64GB(Optional) |
| 64GB recording time |
10-32 hours |
| Operating System |
Windows & Mac OS |
| Ports |
USB 2.0/AV-OUT |
| Language |
Multiple |
| Voltage |
DC :7-24V USB DC:5V |
| Current(Monitor mode) |
600MA |
| Current(Video mode) |
700MA |
| AC Adapter |
DC 12V 2A |
| Built-in Battery |
Li-battery 5000Mah |
| Record time |
¡Ý10hours |
| Dimension: |
177mm x120mm x 20mm |
| Weight |
350g |

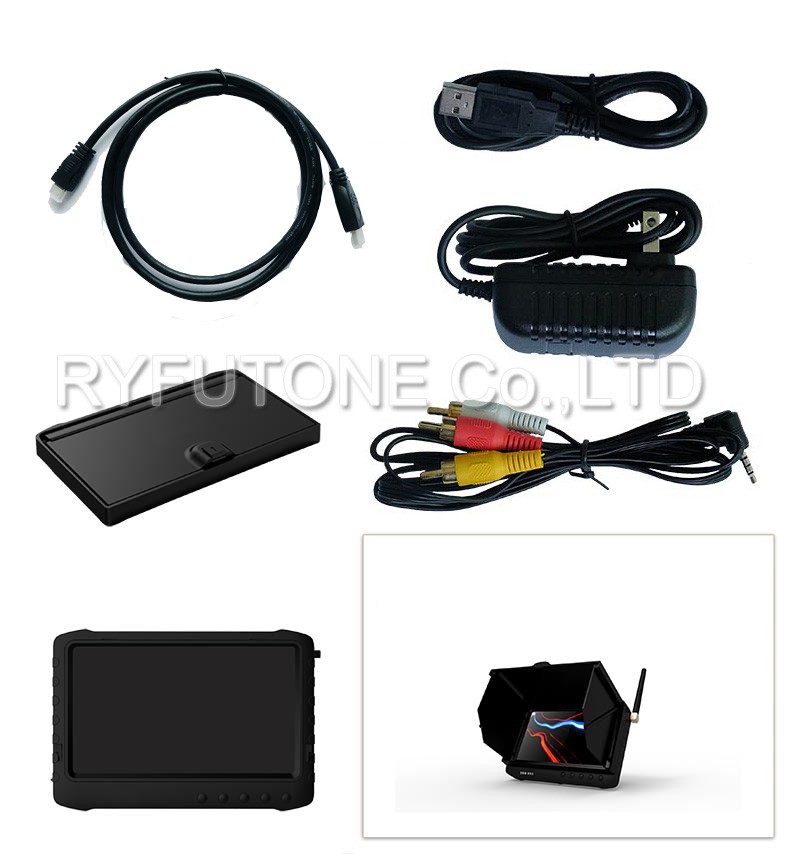

Package :
* 1 * 5m mini camera
* 1 * 7" inch monitor
* 1 * HDMI cable
* 1 * Adapter
* 1 * User manual
* 1 * Aluminium Alloy box
|
