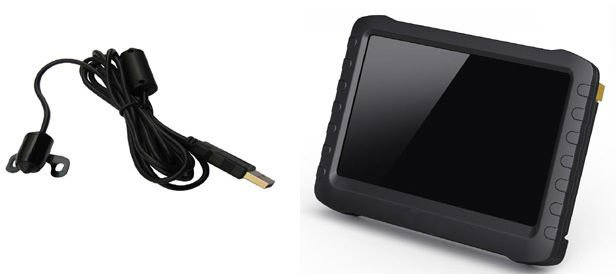

USB 0.008Lux 520TVL Mini Camera And 2.4GHz 5inch Wireless CCTV Camera DVR Monitor Receiver

Usage:

Plug and play !

Just plug it to USB port of AC adapter,computer,camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.

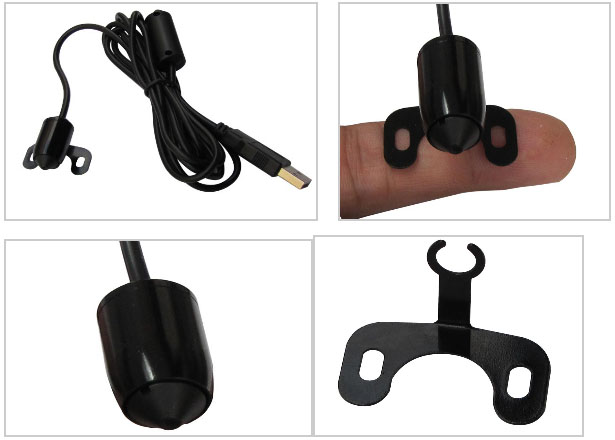

2.4GHz Mini Camera Main Features:

1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.

Specification:

Frequency	2.4G	2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4)	Working channel:1 of 8
	2.3G	2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4)
Audio Subcarrier Frequency		6.0Mhz
Antenna		2.4GHz built-in antenna
RF Output Power		100mW
Transmission Range		150 meters
Total Pixels		NTSC:656(H)×492(V)	PAL:786(H)×576(V)
Horizontal Resolution		520TV Lines
Minimum Illumination		0.008Lux/F1.2
Lens & View angle		90 °
S/N Ratio		﹥48dB
Size (L)		1.8m {lens size (L x D)：27mm X 15mm }
Net Weight（g）		50g
Current		160mA
Voltage		DC 5V
Operation Temperature		- 20°C ~ + 50°C ，Relative Humidity:85﹪

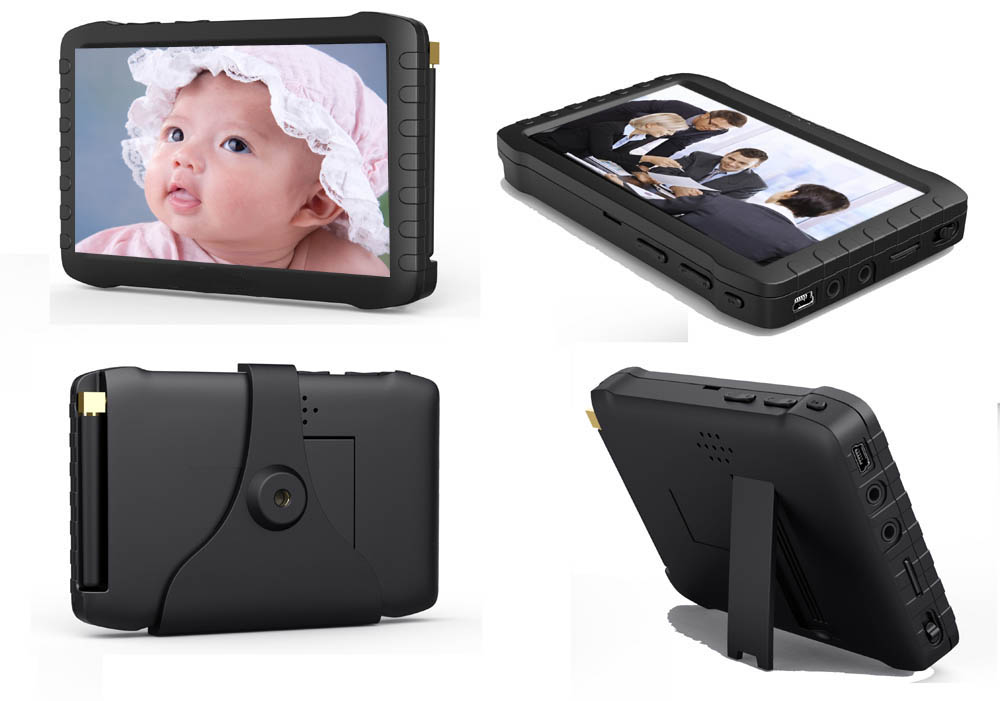

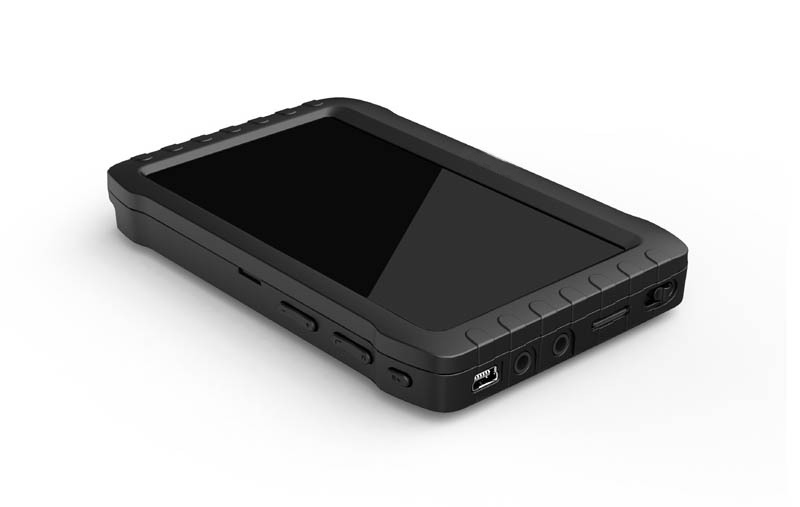

HD 2.4GHz wireless mini DVR :

*  5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
*  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
*  Supports storage up to 32G TF card, which records up to 32 hours;
*  Supports  2.4GHz & 5.8GHz  wireless frequency;
*  8 channels auto/manual switch;
*  Folding hidden external antenna assures excellent wireless receiving;
*  Supports AV IN function: receiving signal from wired cameras;
*  Photo function: it can take, review & store pictures;
*  Supports intelligent motion detect video recording;
*  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
*  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
*  Support power-saving mode: automatic shutdown, automatic off-screen;
*   Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
*  It's of high compatibility, which supports almost all computer operating system, including MAC;
*   Supports multi-language.

HD 2.4GHz wireless mini DVR Specifications:

Items		Value
Wireless Receiving	2.4GHz –8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
		CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
	Sensitivity	-92dB
	Receiving distance	100 meters
AV IN	TV system	NTSC / PAL
	Output voltage	3.6-4.2 V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/㎡
Cape clear 5-inch LCD screen	Active area	118mm(W) X 62.8mm(H)
	Resolution	480 X 272 Pixel
	Luminance for LCM	300cd/㎡
Video	Resolution	720*576 / 640*480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	≥9.5 hours(off-screen); ≥5hours(on-screen)
	Wired record	≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g

Package:

1 * Wireless DVR
1 * Mini Camera
1 * Power adapter
1 * USB line
1 * Install back clip
1 * specification
