MTV-64G5HP 1/4 CCD 22X Optical Zoom Auto Focus Camera

MTV-64G5HP 1/4 CCD 22X Optical Zoom Auto Focus Camera



Condition:New
Model:MTV-64G5HP

MODEL NO. MTV-64G5HN MTV-64G5HP
TV SYSTEM NTSC PAL
IMAGE SENSOR 1/4-inch CCD Image Sensor
CCD TOTAL PIXELS 811(H) X 508(V) 795(H) X 596(V)
SCANNING SYSTEM 525 lines, 60 fields/sec 625 lines, 50 fields/sec
SYNC SYSTEM Internal / VD-Lock
MINIMUM ILLUMINATION Legacy mode 1.5 Lux ( F1.6, 5600ºK)
Star light Mode 0.07 Lux ( F1.6, 5600ºK )
RESOLUTION 520TVL
S / N RATIO 48dB ( MIN ) / 52dB ( TYP ) (AGC OFF，r=1，APC OFF，Y-OUT)
WHITE BALANCE Mode ATW / AWB / FIX ( Zero color rolling)
Range 3200 ~ 9600 ºK
B.L.C. FUNCTION Super BLC,48 zone BLC
GAMMA CORRECTION 0.45 /1
AGC AUTO (18dB max)
ALC AUTO / FIX
IMAGE NEGATIVE Select by OSD menu
CROSS LINE ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS 22X optical ZOOM LENS , F1.6~3.8,f=4.0~88mm
MOTOR- ZOOM / FOCUS / IRIS 500,000 times life
ZOOM 220X (22X optical 10Xdigital)
FOCUS Auto / Manual
POSITION 64 Position (Zoom，Focus)
VIDEO OUTPUT Composite & Y/C output 1.0Vp-p at 75 ohm
CONTROL FUNCTION RS-232C/RS-485(selectable) , OSD control
OSD LANGUAGE SELECT ENGLISH / CHINESS_Simp / JAPANESE
COMMUNICATION BAUD RATE 9600 BPS
OPERATION TEMPERATURE -10℃ TO 50℃
OPERATIONAL HUMIDITY within 85%RH
POWER SUPPLY DC12V±1V / 3.6W(Max)

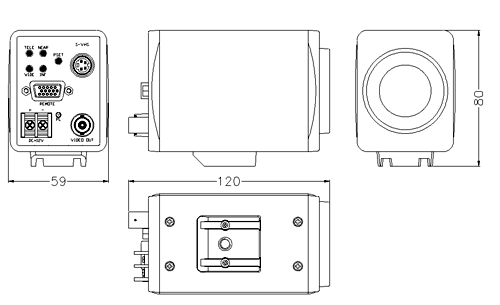

DIMENSIONS 120mm(L) X 59mm(W) X 80mm(H)


* ATW: Auto tracking white balance.
* AWC: One push lock white balance.
