Key Features:
* Professional controller, elegant design
* 2.5 inch high resolution TNT LCD display, can show cameras image
* TFT video playback, 1 line video input
* 3D rocker, easy to control
* OSD editing menu, can adjust PTZ to control parameter and easy to operate.
* NTSC/PAL auto-identify, no need manual set
* Support RS485/RS232/RS422 communication port
* USB port interface design
* Support PELCO-P, PELCO-D etc. protocols
* Built-in shortcut keys, easy to control
Specification:
Specification:
|
| Power Input |
DC9V~12V,1A |
| Power |
5W |
| Display Screen |
2.5 LCD display |
| Video Input |
BNC |
| Video Signal Mode |
Auto Adapt |
| Video Standard |
1.0¡À0.2Vp-p , 75¦¸ |
| Communication Port |
RS485/RS422 |
| RS232 port, DB9 |
| USB port, 300K Byte/s(Receiving/sending rate) |
| Control Protocol |
PELCO-D, PELCO-P, KALATEL, SAE, VICON. etc |
| Communication Baud rate |
2400bps,4800bps,9600bps,19200bps |
| Control address |
1-255 |
| Control |
Left /Right; Up/Down |
| Iris: On/Off |
| Focus: Far/Near |
| Zoom: Tele/Wide |
| Set and call preset point, tracks scan, Pattern, Horizontal auto scan, home place |
| Operation Pole |
3D£¨ Left/Right; Up/Down Zoom£©,rotation |
| Working Temperature |
0¡ã¡«50¡ã |

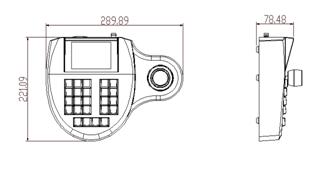

| Package Dimension |
(L)290mm * (W)221mm * (H)79mm | |
|
