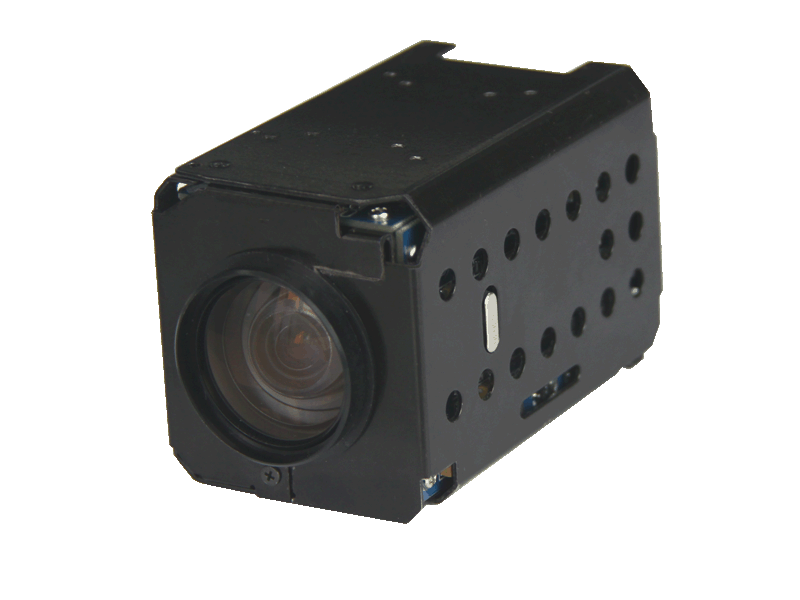

SONY 10X 720P HD 1.3 Megapixel Network Camera
Features:
* 1/2.8" 1.3 Megapixel CMOS sensor
* 10x zoom, F=4.9-49mm, F1.8-F3.0
* AF, AE,AWB control
* International standard BT1120,SMPTE296M with YUV format, LVDS output
* Flash light auto/off/manual
* ISO: auto/manual
* Auto slowly shuttle
* ICR mode auto/manual
* Support HITAICHI interface
* Auto AWB/Sunshine/cloudy/fluorescence/night
* User defined/Auto
Specificaitons:
| Model |
CER13010NRT |
| Name |
1.3 Megapixel 1/2.8" CMOS HD Network Movement |
| Sensor type |
1/2.8" SONY CMOS |
| Scanning system |
Progressive scan |
| Signal system |
PAL/NTSC |
| Minimum illumination |
Color:0.05Lux @ (F1.6£¬AGC ON) B/W:0.01Lux @(F1.6,AGC ON) |
| S/n radio |
>52dB |
| Video output |
TTL |
| Resolution |
50HZ:25fps(1280x960) 60HZ:30fps(1280x960) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) |
| Focus |
4.9-49mm,10 times optical |
| Iris |
F1.8-F3.0 |
| Horizontal viewing angle |
60-10¡ã(optics, wide-field) |
| Close distance |
1m(optics, wide-field) |
| Zoom speed |
About 3.2 seconds(optics, wide-field) |
| Day and night mode |
ICR filter type |
| Support agreement |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP, UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP/SRTP) |
| Exposure mode |
Automatic exposure/Aperture-priority/Shutter priority/Manual exposure |
| Outward interface |
30pin FFC (Network port,RS485,RS232,CVBS, SDHC,Alarm in/Out,Line in/Out,Power supply) |
| Focus mode |
Auto / Manual / Auto zoom |
| External communication |
SONY protocol |
| Len initialization |
Built-in |
| Gain |
3 degree adjustable |
| Day night mode |
Auto / Color / Black and White |
| Electronic shutter |
1/1S ~1/30,000S |
| WDR |
On/off |
| Backlight compensation |
On/off |
| Exposure compensation |
On/off |
| Dead pixel compensation |
Support |
| Work environment |
-20¡æ ~ 70¡æ£¬<90£¥RH |
| Power supply |
DC12V¡À10% |
| Power |
Static 2.5W,Dynamic 4.5W |
| Dimension(mm) |
36¡Á41¡Á63 |
| Weight |
265G | |
