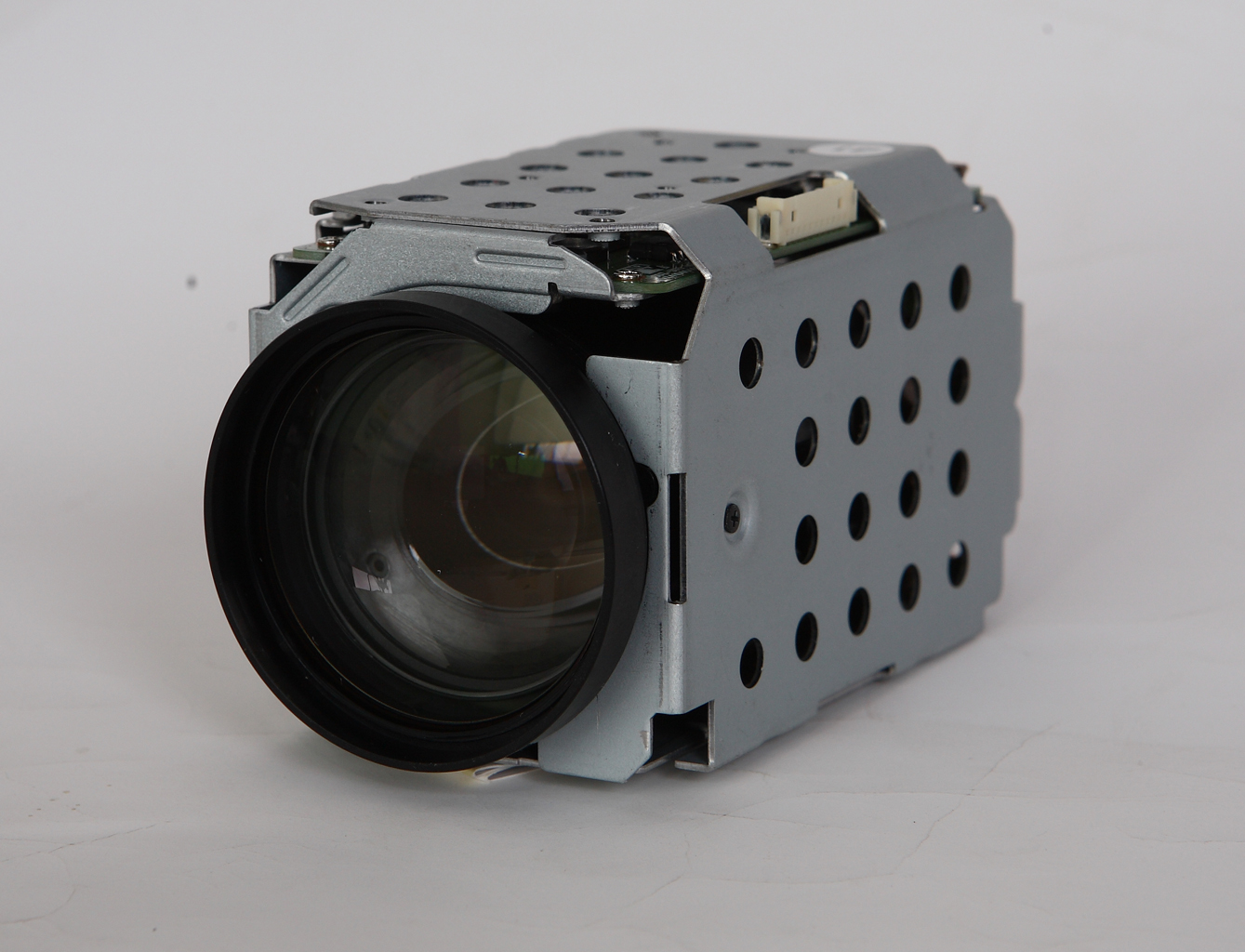

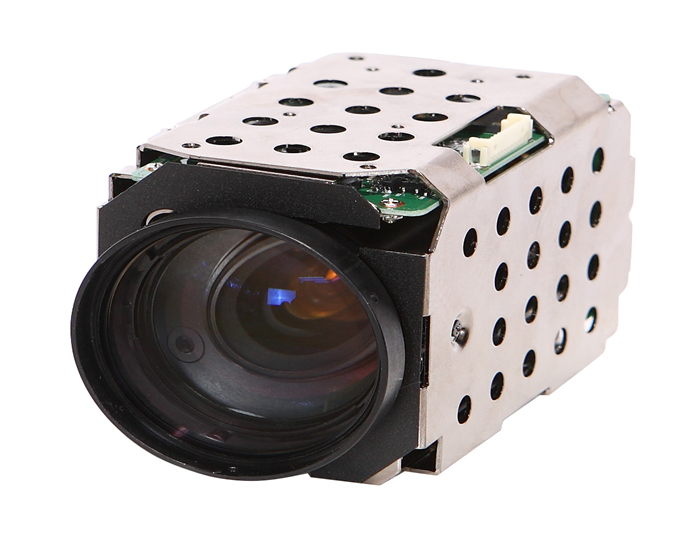

SAMSUNG SCM-2121P 12X Mini High Speed Camera

Parameters:

* CCD: 1/4 inch, Interline Transfer CCD
* Total pixels: 795 (H) x 596  (V)
* Effective pixels: 752 (H) x 582 (V)
* Optical zoom:12 x , f = 3.94 to 46.05 mm (F1.67 to 1.88 )
* The minimum focus distance: 1000 mm
* Digital zoom: continuous 16 x
* Maximum range observation:  level: 51.54 ° (nearly) to 4.49 ° (far)
                            vertical: 39.28 ° (nearly) to 3.39 ° (far)

* Scanning system: 2:1 interlace
* Synchronous: inside/outside synchronization
* Frequency: level: 15.625 KHz/vertical: 50.00 Hz
* The camera ID: 255
* Resolution: color: more than 560 TV lines , black and white: more than 680 TV lines
* Video output:   CVBS: 1.0 the Vp - p / 75 Ω
* Signal-to-noise ratio (S/N) : 52 dB (AGC Off, Weight ON)
* Minimum illumination: color: 0.2 Lux/F1.6 (50 IRE )
                                 black and white: 0.04 Lux/F1.6 (50 IRE )
* Backlight compensation mode: backlight compensation/light inhibition/off
* Translation: day and night color turn black and white (ICR)
* Automatic gain: high, medium and low optional
* White balance: automatic white balance tracking (indoor (3000 ˚ K ~ 6500 ˚ K), outdoor (1800 ˚ K ~ 10500 ˚ K ))/automatic white balance/manual
* Electronic shutter: automatic/manual (X512 ~ 1/50 sec ~ 1/120,000 SEC )
* Sensitivity: x512
* O.S.D menu: built-in 15 languages
* Dynamic detection: on/off (outward output alarm signal)
* External control: RS - 485 or RS - 232 - c CMOS Level (2400, 4800, 9600, 2400, 4800, and 57600 BPS Selectable)
* SSNR (Samsung super noise reduction) : low/medium/high is optional
* SSDR: dark space compensation
* Focus: automatic/manual/automatic focusing
* Zoom speed: 1.84 seconds: Nearly burnt to telephoto
* Lens initialization: built-in
* User the default: 8 groups
* Privacy shelter: total 32 area: 8 groups, each group with screen display four editable area
* Image rollovers: left/up and down
* Freeze: on/off
* Aperture control: manual/automatic
* Size: 39(W)×46.5(H)×65(D)mm
* Work environment: - 10 ℃ to +50 ℃ + / 20% to 80% RH
* Storage conditions: - 20 ℃ to +60 ℃ + / 20% to 95% RH
* Voltage: DC 9 v ~ 12 v (recommendation: 9 v or 12 v)
* Power: static: 1.56 W , motion : 3 W
* DSP: W5
* Weight: 116 G
