| B/W / Color |
B/W |
| Image Size |
5.1 MP |
| Image Sensor |
IMX250 (Polarization image sensor) 2/3-type CMOS with a global shutter function (Pregius) |
| Number of Effective Pixels (H x V) |
2,464 ¡Á 2,056 |
| Cell Size (H x V) |
3.45 ¦Ìm ¡Á 3.45 ¦Ìm |
| Standard Output Pixels (H x V) |
2,448 ¡Á 2,048 |
| Frame Rate |
23 fps (8 bit, Mono/Raw) |
| Minimum Illumination |
1.5 lx (iris: F1.4, Gain: +18 dB, Shutter: 1/23 s) |
| Sensitivity |
F4 (400 lx, Gain: 0 dB, Shutter: 1/23 s) |
| SNR |
More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain |
Auto, Manual: 0 dB to 18 dB |
| Shutter Speed |
Auto, Manual: 60 to 1/100,000 s |
| Camera Features |
Readout Modes (Normal, Partial scan), Test pattern |
| Synchronization |
Hardware trigger, Software trigger, PTP (IEEE1588) |
| Trigger Modes |
OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst trigger, Bulk trigger, Sequential trigger, Free set sequence) |
| User Set |
16 |
| User Memory |
64 kbytes + 64 bytes ¡Á 16 channels |
| Partial Scan |
W (Pixel): 16 to 2,464; H (Line): 16 to 2,056 |
| GPO |
EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (selectable) |
| Other Features |
Area gain, Defect correction, Shading correction, Temperature readout |
| Interface |
Gigabit Ethernet (1000BASE-T/100BASE-TX) |
| Video Data Output |
Digital Mono8, 10, 12 bit (default setting 8 bit) |
| Camera Specification |
GigE Vision® Version 2.0/1.2 |
| Digital I/O |
ISO IN (x1), TTL IN/OUT (x2, selectable) |
| Lens Mount |
C mount |
| Flange Back |
17.526 mm |
| Power Requirements |
DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V) |
| Power Consumption |
DC +12 V 3.3 W (max.), IEEE802.3af 3.7 W (max.) |
| Operating Temperature |
¨C5 ¡ãC to +45 ¡ãC (23 ¡ãF to 113 ¡ãF) |
| Performance Guarantee Temperature |
0 ¡ãC to 40 ¡ãC (32 ¡ãF to 104 ¡ãF) |
| Storage Temperature |
¨C30 ¡ãC to +60 ¡ãC (¨C22 ¡ãF to +140 ¡ãF) |
| Operating Humidity |
20% to 80% (no condensation) |
| Storage Humidity |
20% to 80% (no condensation) |
| Vibration Resistance |
10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z) |
| Shock Resistance |
70 G |

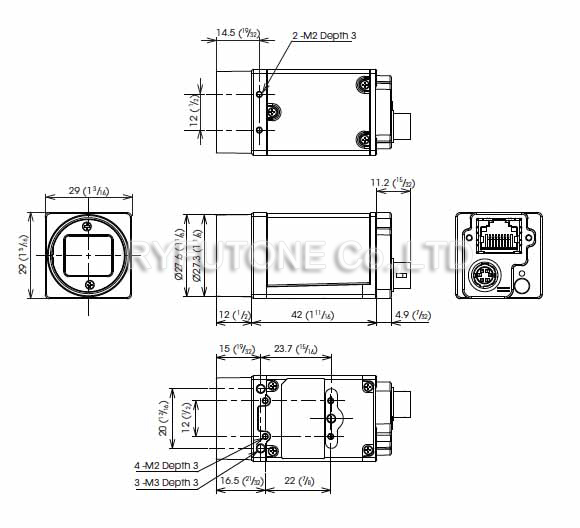

| Dimensions (W x H x D) |
29 ¡Á 29 ¡Á 42 mm (1 3/16 ¡Á 1 3/16 ¡Á 1 11/16 inches) (excluding protrusions) |
| Mass |
Approx. 65 g (2 oz) |
| MTBF |
62,042 hours (Approx. 7.1 years) |
| Regulations |
UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3 |
| Supplied Accessories |
Lens mount cap (1), Safety Regulations (1) |
