The Sony XCG-CG40 is a 0.4MP GigE Vision camera featuring the IMX287 Pregius global shutter CMOS sensor, delivering 300 fps for high-speed, precise imaging. Compact and PoE-enabled, it supports advanced features like area gain, defect correction, LUT adjustments, and IEEE1588 for synchronized applications, making it ideal for demanding industrial and machine vision tasks.
Measuring 29 mm x 29 mm x 42 mm and weighing only 65 grams, the XCG-CG40 fits seamlessly into space-limited setups and is an excellent replacement for CCD-equipped cameras. It inherits the mounting dimensions of Sony's XCG-C series, making it highly compatible with existing systems. Power over Ethernet (PoE) and compliance with the GigE Vision 2.0 standard allow for simplified setup and integration. Advanced features like area gain, defect correction, Look Up Table (LUT) adjustments, and a 3 x 3 filter further enhance imaging flexibility and quality.
Features:
* Compact design: 29 mm x 29 mm x 42 mm
* 0.4MP resolution with Sony IMX287 Pregius sensor
* Global shutter CMOS for blur-free imaging
* 300 fps frame rate for high-speed imaging
* GigE Vision 2.0 with IEEE1588 support
* Power over Ethernet (PoE) for easy setup
* Area gain, defect correction, and LUT adjustment
* Temperature readout and 3 x 3 filter for optimized image quality
Specifications:
| Image Sensor |
IMX287: 1/2.9-type Global Shutter CMOS Sensor (Pregius) |
| Number of Effective Pixels (H x V) |
728 ¡Á 544 |
| Cell Size (H x V) |
6.90 ¦Ìm ¡Á 6.90¦Ìm |
| Standard Output Pixels (H x V) |
720 x 540 |
| Frame Rate |
300 fps (8bit, Mono/Raw) |
| Minimum Illumination |
0.5 lx (Iris: F1.4, Gain: +18dB, Shutter: 1/100 s) |
| Sensitivity |
F11 (400 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR |
More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain |
Auto, Manual: 0 dB to 18 dB |
| Shutter Speed |
Auto, Manual: 60 to 1/100,000 s |
| Camera Features |
Readout Modes Normal, Partial scan |
| Synchronization |
Hardware trigger, Software trigger, PTP (IEEE1588) |
| Trigger Modes |
OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst trigger, Bulk trigger*, Sequential trigger*, Free set sequence*) *Except XCG-CG40 |
| User Set |
16 |
| User Memory |
64 kbytes + 64 bytes ¡Á 16 channels |
| Partial Scan |
W (Pixel) 8 to 728
H (Line) 8 to 544 |
| GPO |
EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (Output switching) |
| Other Features |
Area gain, Defect correction, Shading correction*, Temperature readout, LUT, 3 x 3 filter *Except XCG-CG40 |
| Video Data Output |
digital Mono 8, 10, 12 bit ( at the time of shipment 8 bit) |
| Digital Interface |
Gigabit Ethernet (100BASE-TX / 1000BASE-T) |
| Camera Specification |
GigE Vision® Version 2.0/1.2 |

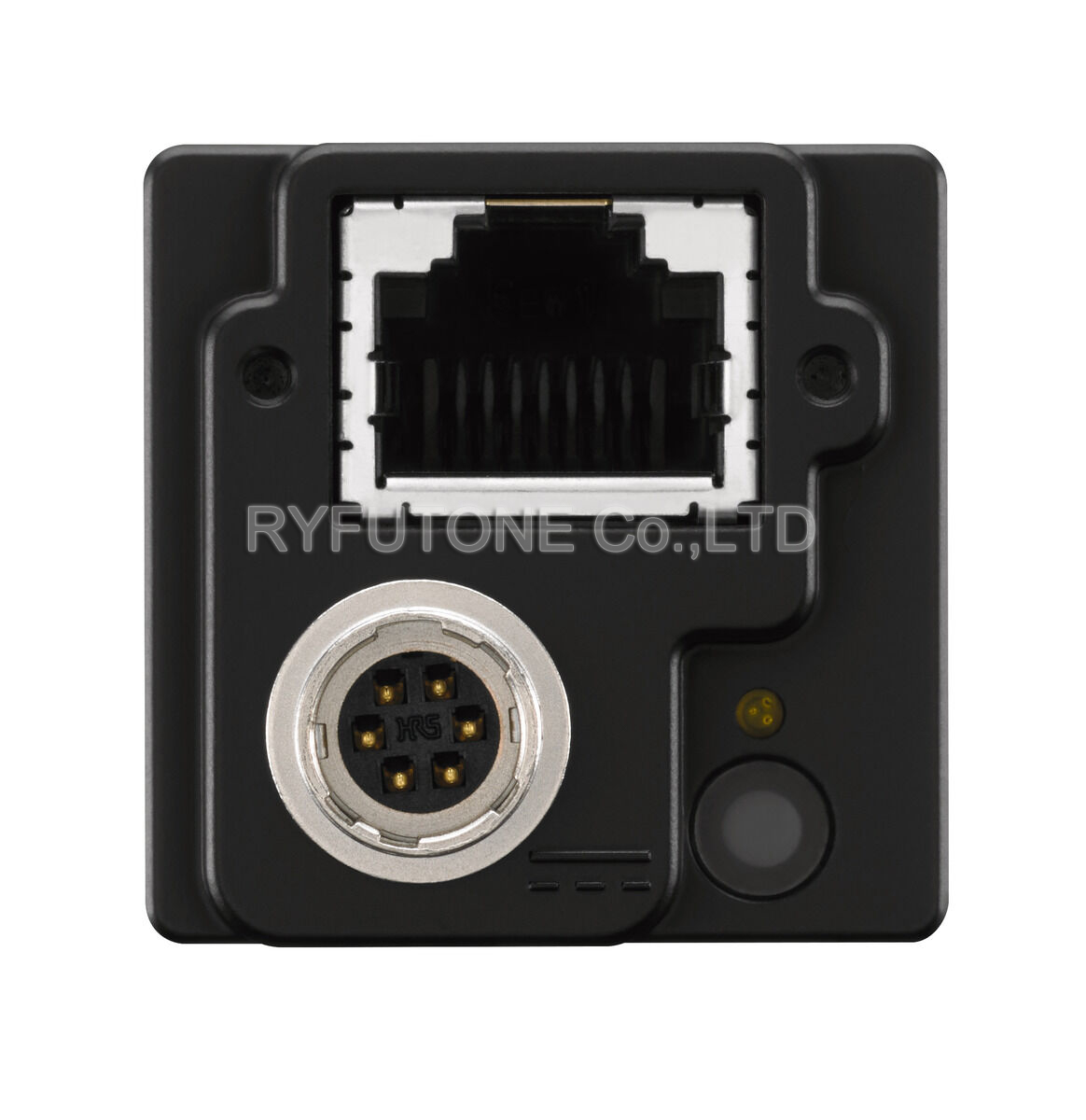

| Digital I/O |
ISO IN (x1), TTL IN/OUT (x2, selectable) |
| Lens Mount |
C mount |
| Flange Back |
17.526 mm |
| Power Requirements |
DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V) |
| Power Consumption |
DC +12 V 3.3 W (max.), IEEE802.3af 4.0 W (max.) |
| Operating Temperature |
¨C5 ¡ãC to +45 ¡ãC (23 ¡ãF to 113 ¡ãF) |
| Performance Guarantee Temperature |
0 ¡ãC to 40 ¡ãC (32 ¡ãF to 104 ¡ãF) |
| Storage Temperature |
¨C30 ¡ãC to +60 ¡ãC (¨C22 ¡ãF to +140 ¡ãF) |
| Operating Humidity |
20% to 80% (no condensation) |
| Storage Humidity |
20% to 80% (no condensation) |
| Vibration Resistance |
10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z ) |
| Shock Resistance |
70 G |

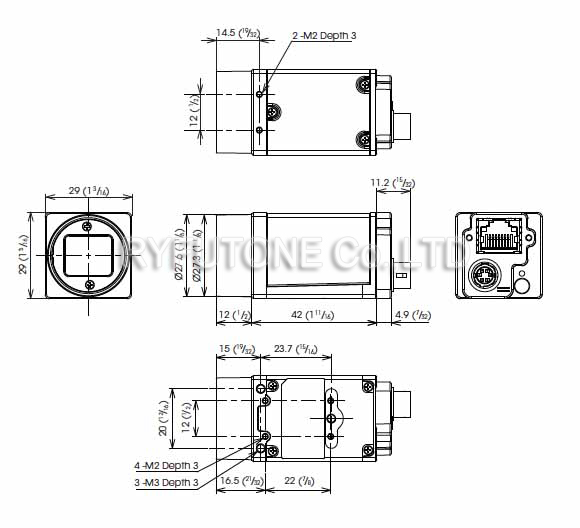

| Dimensions (W x H x D) |
29 ¡Á 29 ¡Á 42 mm (1 3/16 ¡Á 1 3/16 ¡Á 1 11/16 inches) (excluding protrusions) |
| Mass |
Approx. 65 g (2.3 oz) |
| MTBF |
58,525 hours (Approx. 6.7 years) |
| Regulations |
UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3 |
| Supplied Accessories |
Lens mount cap (1), Safety Regulations (1) |
Applications:
* Automated optical inspections (AOI)
* Robotics and robotic vision
* Medical imaging systems
* High-speed sorting and production lines
* Quality control and defect detection
* Precision measurement
|
|
