Watec WAT-137LH B/W Industrial Camera 570TV Lines Block Camera

The Watec WAT-137LH Camera is a professional grade CCTV camera capable of producing and maintaining high resolution images in both ideal and challenging lighting environments. Watec WAT-137LH is achieved through the use of a 1/3" IT CCD along with a number of electronic picture controls. This level of performance coupled with the camera's compact profile makes it particularly well suited for residential or commercial applications requiring dependable yet minimally intrusive security monitoring.

Watec WAT-137LH Camera Features:

*  Outstanding image quality with 1/3" CCD and 570 lines of resolution
*  Compact and lightweight design
*  Auto iris function ensures properly exposed images in fluctuating light levels
*  Accepts industry standard CS mount lenses
*  Illumination High Resolution
*  Power synchronization adjustment
*  AC24V/DC12V power supply automatically detects

Watec WAT-137LH Specifications:

Model	WAT-137LH
CCD	1/3″
Effective Pixels	440K
Synchronizing System	inter-sync Power synchronization
Scanning system	2:1
video output	1Vpp-75Ω
Horizontal resolution	570TVL
minimum illumination	0.002LuxF1.4(AGC High)
automatic gain control	5~42dB
SNR	50dB
gray properties	γ≒0.45
Backlight compensation	ON
Auto electronic shutter	Fixed electronic shutter OFF(1/50) Flicker Filter F.L(1/120) Auto electronic shutter EI(1/50~1/100，000sec)
Mount	CS
Auto Iris Lens	VIDEO/DC
Working Voltage	DC+12V±10%
working current	85mA(AC24V) 200mA(DC12V)
Storage Temperature	-30℃~+70℃
Operating Temperature	-10℃~+40℃

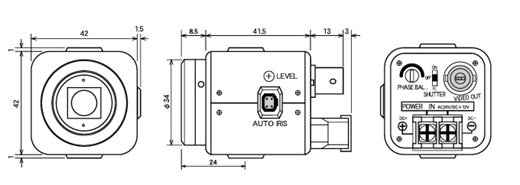

outside dimensions	43.5x44x67.5MM
Weight	140g
