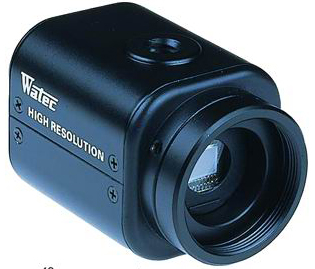

The Watec WAT-902B 1/2" 570TVL High Sensitivity Monochrome Camera (EIA) offers high sensitivity and resolution in an ultra compact size camera .
A variety of internal controls are included to ensure image quality in various lighting environments, making it ideal for security and machine vision applications.
Watec WAT-902B Camera Features:
* Watec WAT-902B 1/2" Interline transfer CCD Image sensor,
* RCA Video Out and Auto Iris Connection,
* EIA Signal System,
* High Resolution: 570 TVL,
* Super low light sensitivity 0.003 Lux @ F1.4,
* AGC,
* Shutter speed control,
* Electronic iris,
* Flickerless mode,
* Back light compensation,
* Gamma correction,
* CS lens mount,
* Image color is black and white,
* The minimum illumination 0.003 lux,
* Horizontal resolution 570 TVL;
* Watec WAT-902B performance better.
Watec WAT-902B Camera Specifications:
| Model |
WAT-902B (EIA) |
WAT-902B (CCIR) |
| Pick-up element |
1/2 inch interline transfer CCD image senso |
| Number of total pixels |
811(H) x 508(V) |
795(H) x 596(V) |
| Number of effective pixels |
768(H) x 494(V) |
752(H) x 582(V) |
| Unit cell size |
8.4¦Ìm(H) ¡Á 9.8¦Ìm(V) |
8.6¦Ìm(H) ¡Á 8.3¦Ìm(V) |
| Synchronizing system |
Internal |
| Scanning system |
2:1 interlace |
| Video output |
Composite Video, 1Vp-p, 75ohms, unbalanced |
| Resolution (H) |
570TVL (Center) |
| Minimum illumination |
0.003x F1.4 |
| S/N |
More than 50dB (AGC=10dB,¦Ã=1.0) |
| AE mode |
Fixed |
1/60, 1/100 sec. |
1/50, 1/120 sec. |
| EI |
1/60 - 1/100000 sec. |
1/50 - 1/100000 sec. |
| AGC |
ON |
HI: 5 - 32dB / LO: 5 - 20dB |
| OFF |
10dB |
| Gamma characteristics |
¦Ã¨P0.45(ON) /¦Ã=1.0(OFF) |
| Lens-iris |
Video (Watec original arrangement) |
| Back light compensation |
ON/OFF |
| Power supply |
DC+12V¡À10% |
| Power consumption |
1.74W (145mA) |
| Operating temperature |
-10¡ãC- +40¡ãC |
| Storage temperature |
-30¡ãC- +70¡ãC |
| Operating / Storage humidity |
Less than 95% RH (Without condensation) |
| Lens mount |
CS mount |
| Weight |
Approx. 90g |

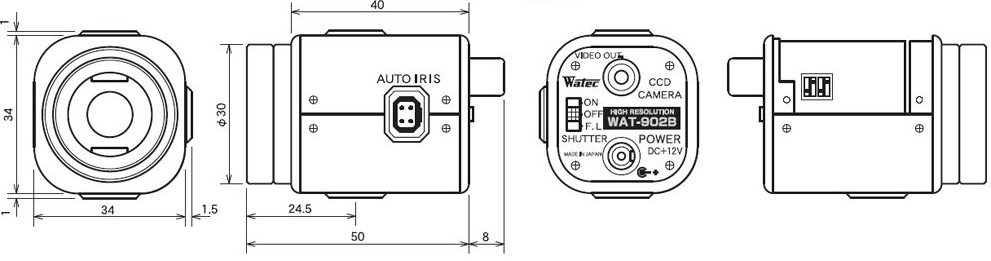

| SizeW¡ÁH¡ÁL(mm) |
35.5¡Á36¡Á58 |
|
