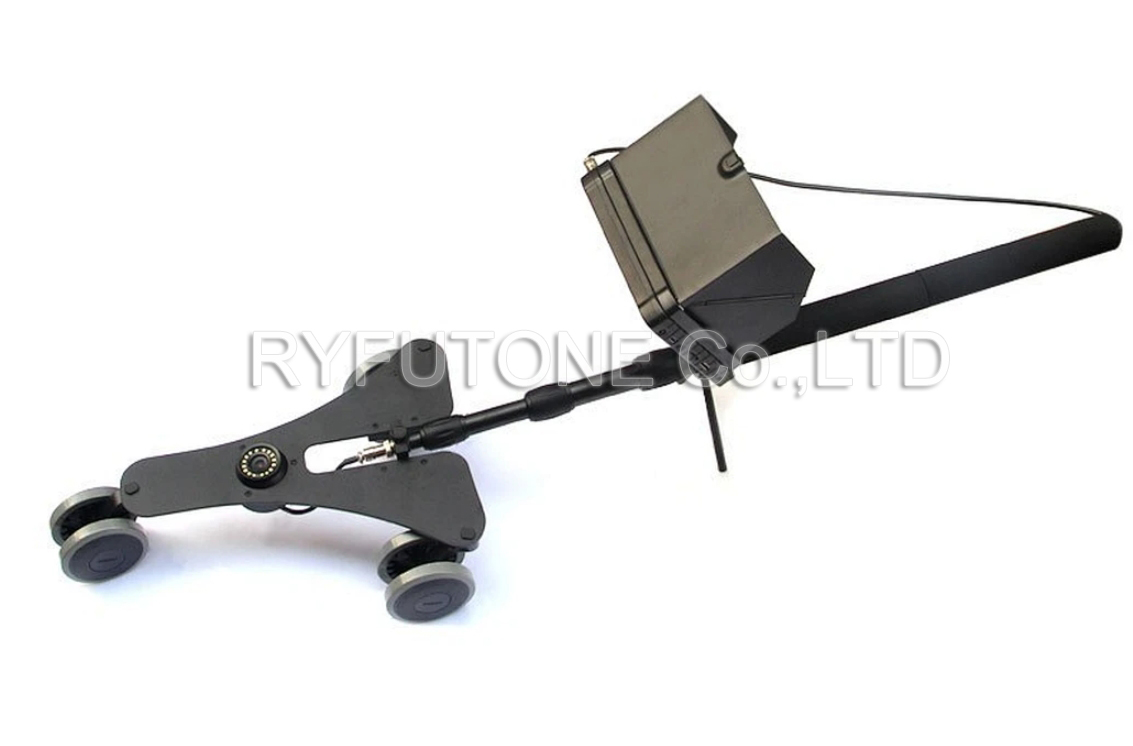

Flexible 5MP 16LED 18mm Camera Telescope Inspection Camera Handheld Video / Under Vehicle Monitoring System

Flexible 5MP 16LED 18mm Camera Telescope Inspection Camera Handheld Video / Under Vehicle Monitoring System



Handheld Video/Under Vehicle Surveillance System

Features:

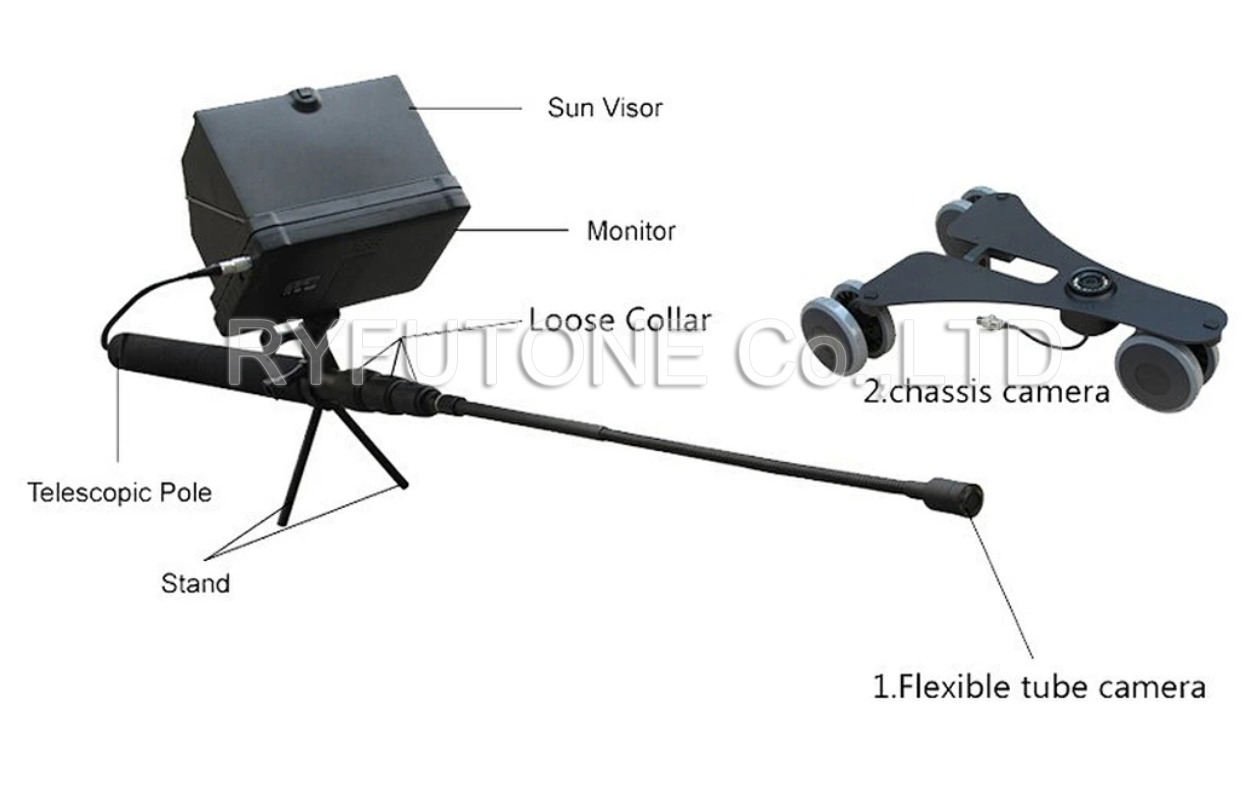

* Dual HD digital cameras for inspection.
* First camera: 5.0 Mega 16 LED camera with universal wheels.
* Second camera: 5.0 Mega 6 LED camera ¦Õ18mm, flexible rod 0.5m. v * Universal wheels with wear-resistant tires.
* Reinforced design passed 10,000 crash tests.
* 7-inch monitor with sunlight visibility.
* Supports 64GB storage.
* Supports HDMI video output.
* Supports H.264 video compression format.
* 5000mAh Li-ion battery, 8 hours working time.

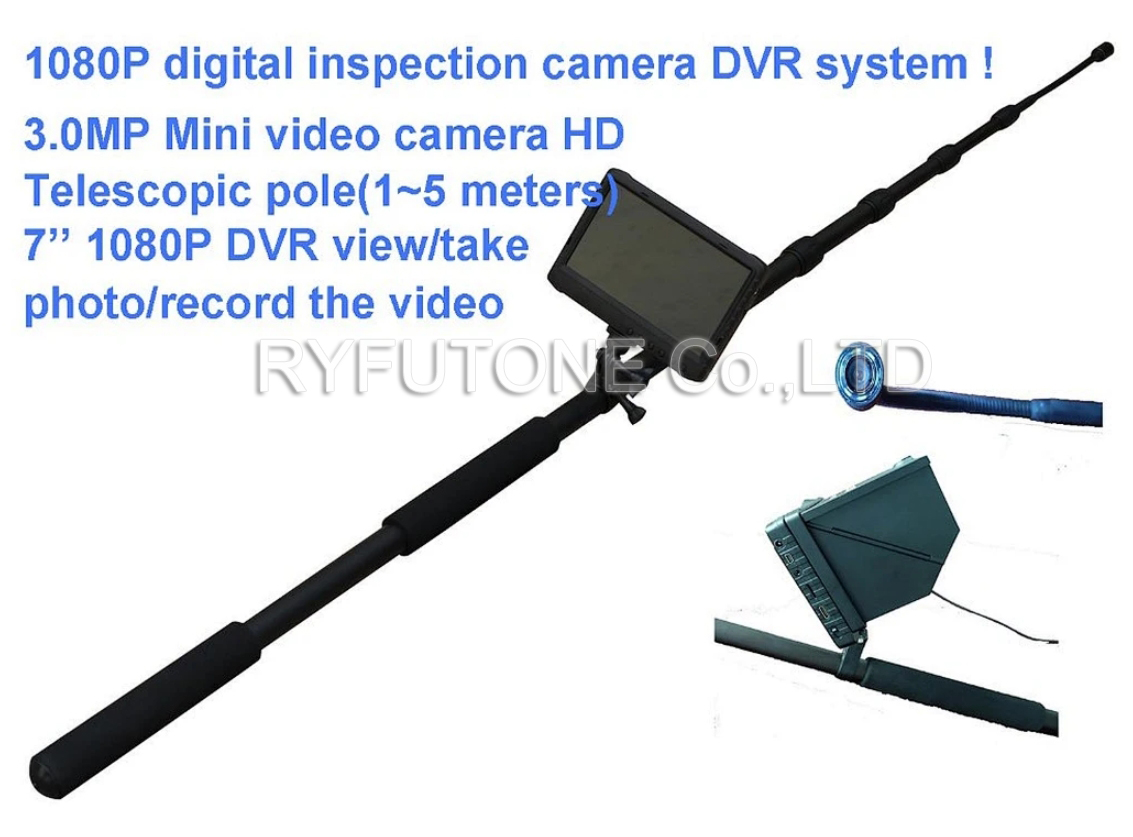

* 2M telescopic inspection rod for general use.

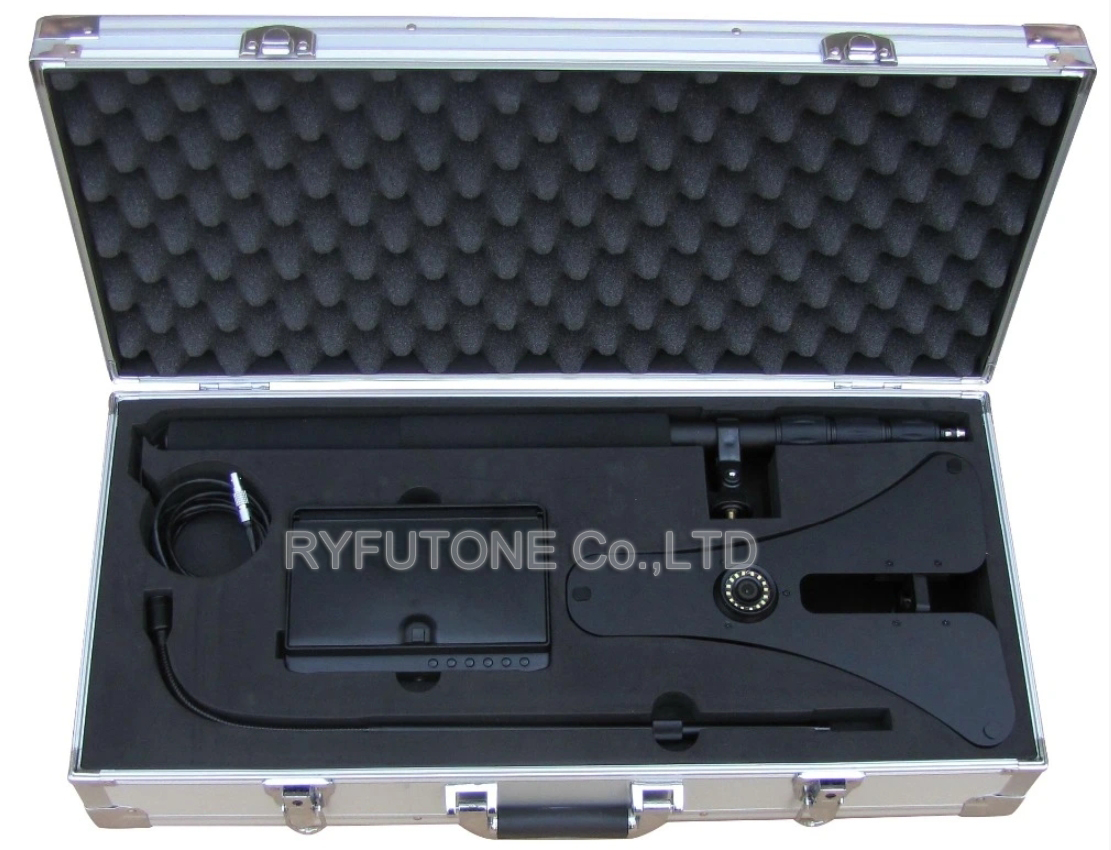

* Advanced aluminum case.
* Excellent video and photos, comparable to an iPhone.



Applications:
This new product can be used at airports, docks, customs, hotels, prisons, restricted areas, etc., to inspect the security of vehicle undersides. It is also suitable for private cars. It is also ideal for checking whether there are explosives under parked cars in stadiums, stations, cinemas, theaters, large factories, and venues.

Attention:
* The camera on the wheel cannot be removed.
* The camera is waterproof.
* The wheels can be used on all types of terrain.

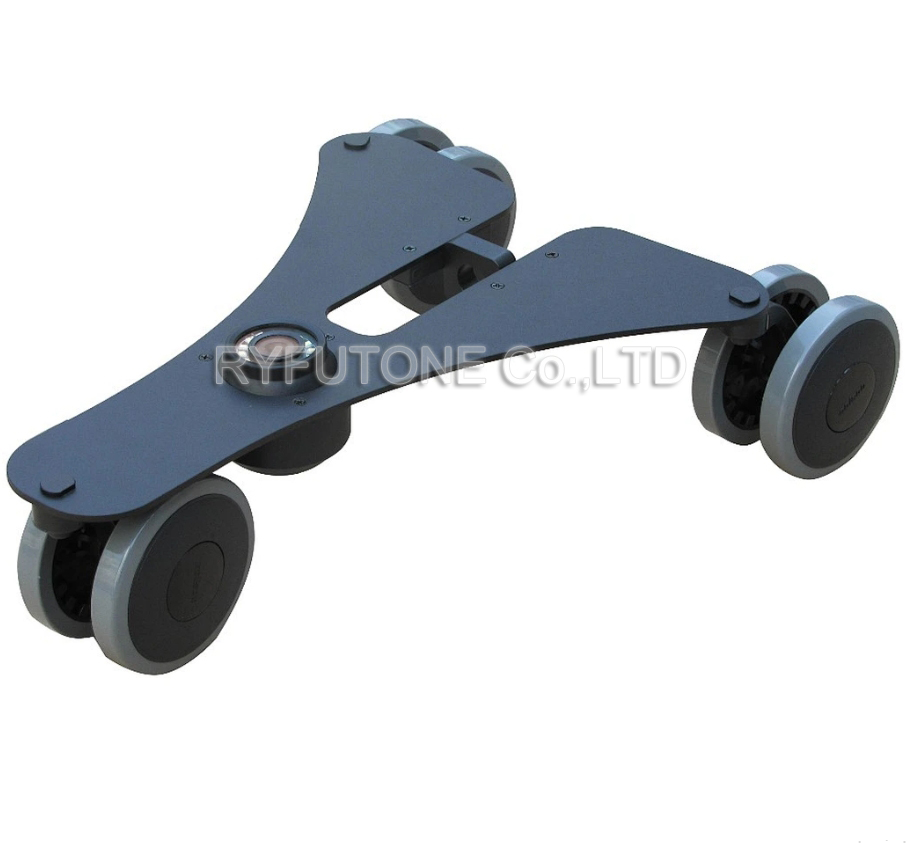

Digital camera for wheels tray



Optical Element



1/2.5 CMOS Sensor SONY


Optical Total Pixels



5 Mega :2000(H)¡Á1121(V)


CMOS Sensor Size



5.6mm(H)¡Á3.14mm(V)


LED lamps



16 pcs LED lamps high light


Sensitivity



0.08Lux/F1.2


Lens & View angle



3.6mm F1.2 (H )90 ¡ã


HD Video Output Interface



FPD-Link¢ó


Wheels on the tray



Omni-directional wheel


Dimension & Weight



37 x 46mm, 35g(only camera)


Cable(5 Cores High-Speed Line)



Diameter:3.5mm Length:2.7 meters

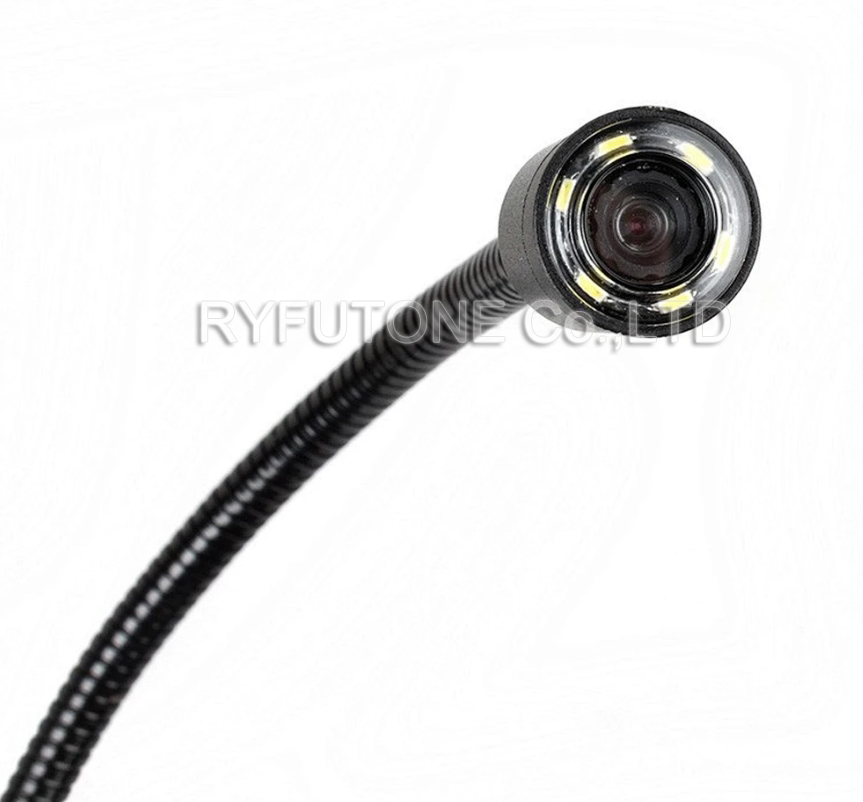

Mini camera for soft metal pipe



Optical Element



1/3 CMOS Sensor


Optical Total Pixels



5.0 Mega:2304(H)¡Á1536(V)


CMOS Sensor Size



5.07mm(H)¡Á3.38mm(V)


LED lamps



6 pcs LED lamps hight light


Sensitivity



0.2Lux/F1.2


Lens & View angle



0.5mm F1.2 90 ¡ã


HD Video Output Interface



FPD-Link¢ó


Dimension & Weight



18 x 28mm, 10g


Cable(5Cores High-Speed Line)



Diameter:3.5mm Length:3meters


Flexible pipe lenth



162.5px of soft metal pipe (total :1250px)


Telescopic Pole



Constriction Length:950px



Unfolded Length:4750px


DVR
7-inch SCREEN



HD Video Output



HDMI:1920* 1080;1280*720


Video Storage Pixels(16:9)



HDMI:1920* 1080;1280*720


Video Compression Format



H.264


Video Storage



AVI


HD Digital Video Input Interface



FPD-Link¢ó


Audio Frequency Range



20HZ-20KHz AAC


Audio Compression Format



AAC


Photo Format



JPG 3.15 Mega :3200(H)¡Á1800(V)


Storage External SD card



TF card 1GB-64GB(Optional)


Operating System



Windows & Mac OS


Port



USB 2.0


Language



Multiple


Voltage



DC :7-24V USB DC:5V


Current(Monitor mode)



600 mA


Current(Video mode)



700 mA


AC Adapter



DC 12V 1A


Built-in Battery



Li-battery 5000mAh


Record time



8 hours


Dimension:



177mm x120mm x 20mm


Sunshade



One-press open sunshade


Weight



350 g
