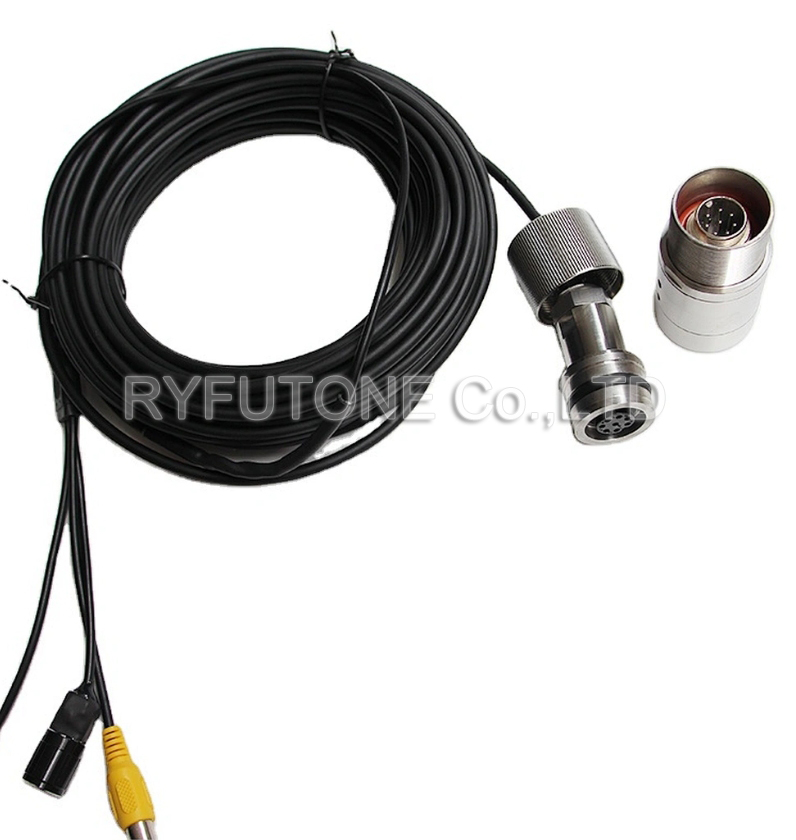

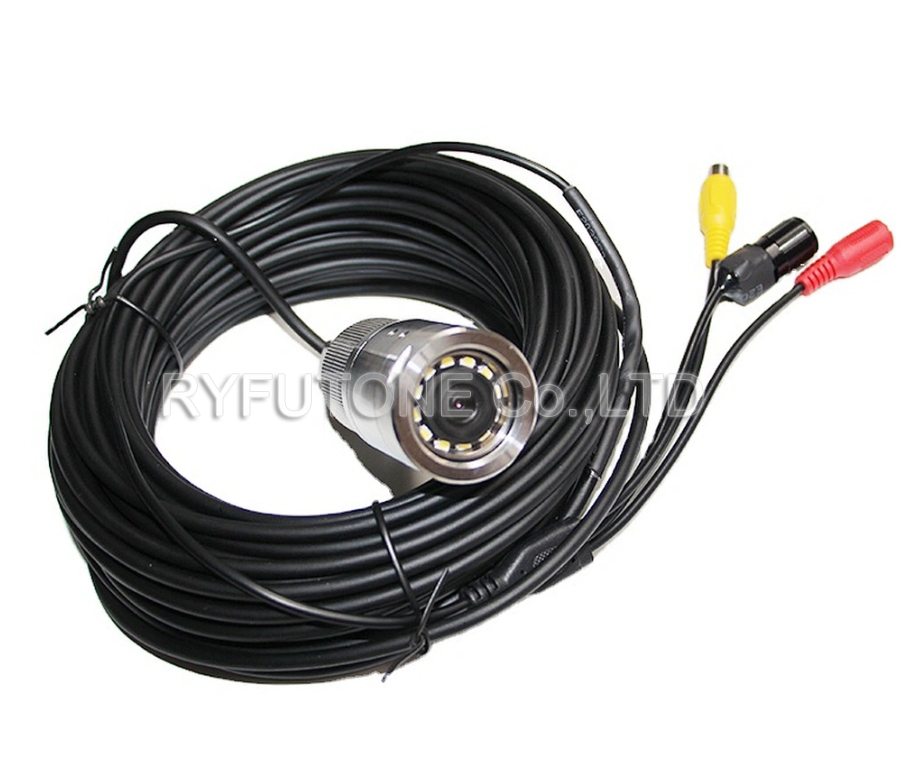

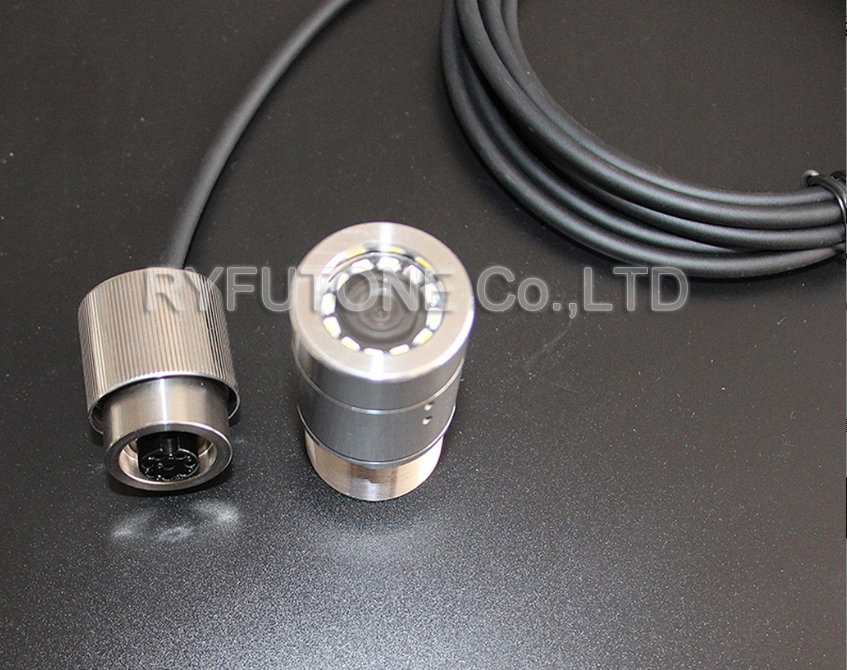

10.1-inch 4K HD Monitor Stainless Steel Pipe Camera, Underwater Drain Inspection Camera Kit with 100M Cable.
Features:
* 5MP HD-AHD 316L stainless steel sony cameraŁ¬12 pcsLED 8-grade brighness controlled by monitor
* 0.0001Lux/F1.2 ensures clear image under water
* The camera can withstand 200m waterpressure Cold-resistant, waterproof and pull-resistant black cable.
* 10.1 inch touch screen color monitor 1280*800 pixel. with sunvisor
* Record Support recording, photo ,Playback , 10 times Zoom, mirror, baseline,edit photos wifi transmit
* Max 256GB TF card supported, Default 64GB card

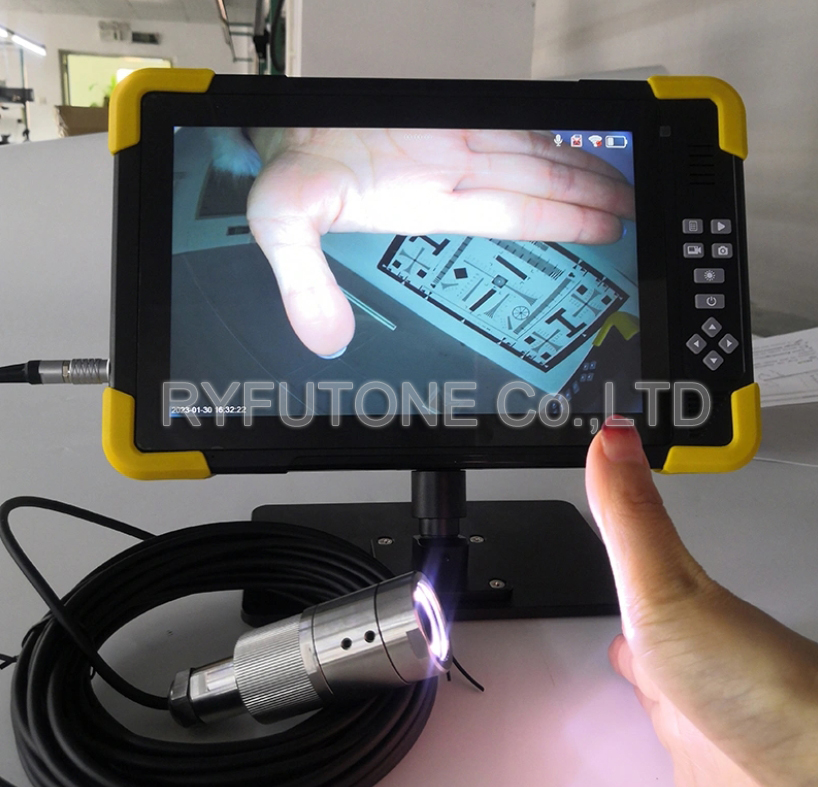

10.1inch Monitor:
* 10.1 inch full view(1280*800pix) IPS Touch screen
* Touch screen and buttons both work
* Video input:AHD 4K,2K,1080P,720P ,CVBS video input
* Video Output: HDMI 1080P
* Support 4K,2K,1080P Record, photo, playback,10 times zoom
* Video compression format:H.265
* Max Storage: up to 256GB TF card
* Compressed video and audio are synchronous
* Built-in 6500mAh high capacity Li-battery, Battery is exchangeable
* Support WiFi to view via mobile
Camera Size:
| amera Sensor |
5MP 2560*1440px |

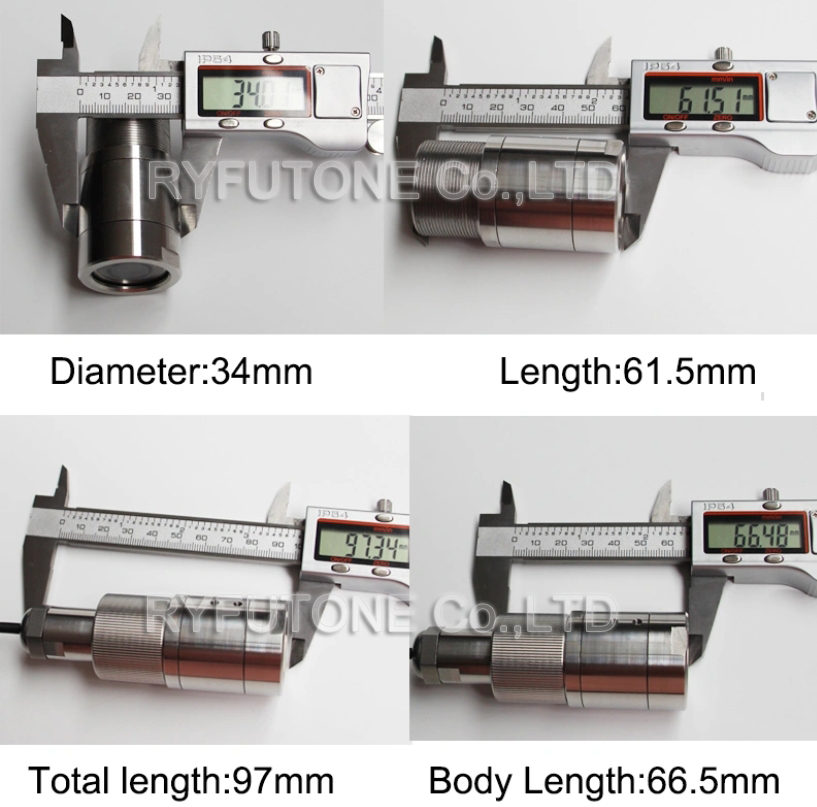

| Camera Size |
D:34*61.5mm |
| Light Source |
12 LED or IR850nm ir940nm invisible ir |
| View angle |
2.8mm Fov(D):120 degree |
| Camera Housing |
316L stainless steel |
| Camera waterproof Rate |
IP68 |
| Working depth |
Max 200m |
| Pressure |
20 bar |
| Cable lenght |
100m cable 5.0mm diameter |
|
|
| Display |
10.1 inch |
| Screen Resolution |
1280*800 px |
| Touch screen |
capacitive touch |
| Video recording |
4K(16:9): 3840x2160@25 /30fps |
|
2K(4:3): 2560x1944@25 /30fps |
|
2K(16:9): 2560x1440@25 /30fps |
|
1080p(16:9): 1920X1080@25 /30fps |
| Video input |
1080P 25fps,1080P 30fps,720P 25fps, |
|
720P 30fps,CVBS pal, CVBS ntsc |
| Video format |
MP4 |
| Photo |
12MPˇ˘8MPˇ˘4MPˇ˘2MP (JPG) |
| Video Output |
HDMI 1080P |
| Compression mode |
H. 265 video compression |
| Audio input/output |
1.0Vp-p (20Hz-20KHz) |
| Speaker Output |
1W |
| Camera LED Control |
PWN |
| File System Support |
FAT32 |
| Memory card |
TF card 2GB-256GB |
| Language |
China, English, South Korea, Russia, etc |
| Voltage |
DC :12V USB DC:5V |
| WiFi Protocol |
802.11 a/b |
| WiFi Channel |
2.4000-2.4835Ghz |
| WiFi power |
<16dBm |
| Power Supply |
DC 12V 2.5A |
| Lithium battery capacity |
6500mAh( 48Wh) |
| Maximum charging power |
15W |
| working hours |
6-8 Hours |
| Operating temperature |
-20 to 50 Deg |
| Waterproof grade |
IP65 |
| Size |
L*W*H 30*19*1.8CM |
| Weight |
870G |
Application:
it widely use for fishing Aquaculture, commercial diving, Education & research, Hydro electric, Marine construction, Swimming,training, underwater monitoring , underwater security and rescue, water well inspection and so on.
|
|
