Hot-selling 5MP 1080P Full HD Digital Car Safety Inspection Mirror Portable Telescope Camera for Vehicle Inspection System
Hot-selling 5MP 1080P Full HD Digital Car Safety Inspection Mirror Portable Telescope Camera for Vehicle Inspection System
5MP 1080P HD,HDMI video output,8 hours working time,Waterproof

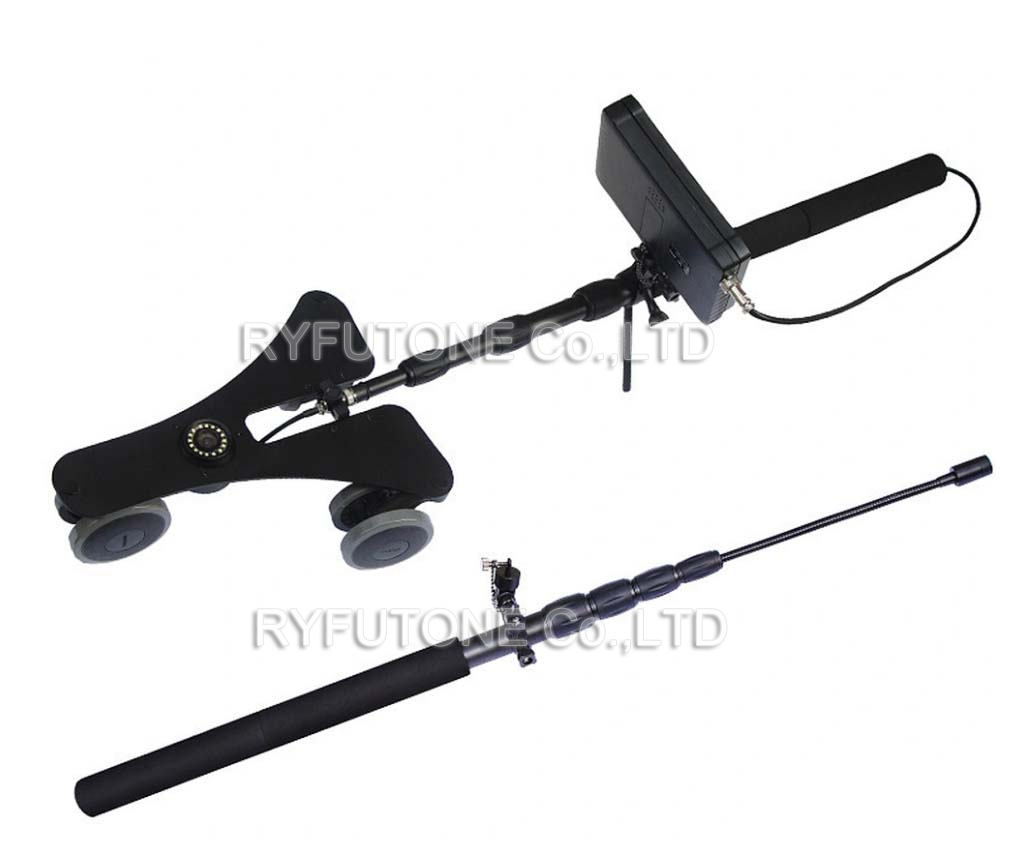

This 5MP 1080P full HD digital portable telescopic pole camera under vehicle inspection system is for vehicle bottom security surveillance.2 kind telescopic survey pole for all-purpose usage .Our UVSS solutions are designed to scan, monitor,anddigitally record crisp,clear digital video images of the entire width of a vehicle's undersides portable system.
Features :
* Double HD digital camera for checking.
* 1st camera: 5.0MP 16 LED camera with universal wheels.
* 2nd camera: 5.0MP 16 LED camera ¦µ18mm with 0.25m flexible pole.
* Universal wheel with wear-resisting tires.
* Reinforced design passed 10000 times crash testing.
* 2m Telescopic Survey Pole for all-purpose usage.
* A 7-inch monitor with a sunshade.
* Wheels are available to all types of terrains.
* Support 64GB storage.
* Support HDMI video output.
* Support H.264 Video Compression Format.
* 7500mah Li-battery, 8 hours working time.
* The camera is waterproof.
* Top grade aluminum alloy case.
* Excellent video and photo.
HD waterproof digital camera head with 6 LED:
Own wheel tray design with the patent of invention:
Application:

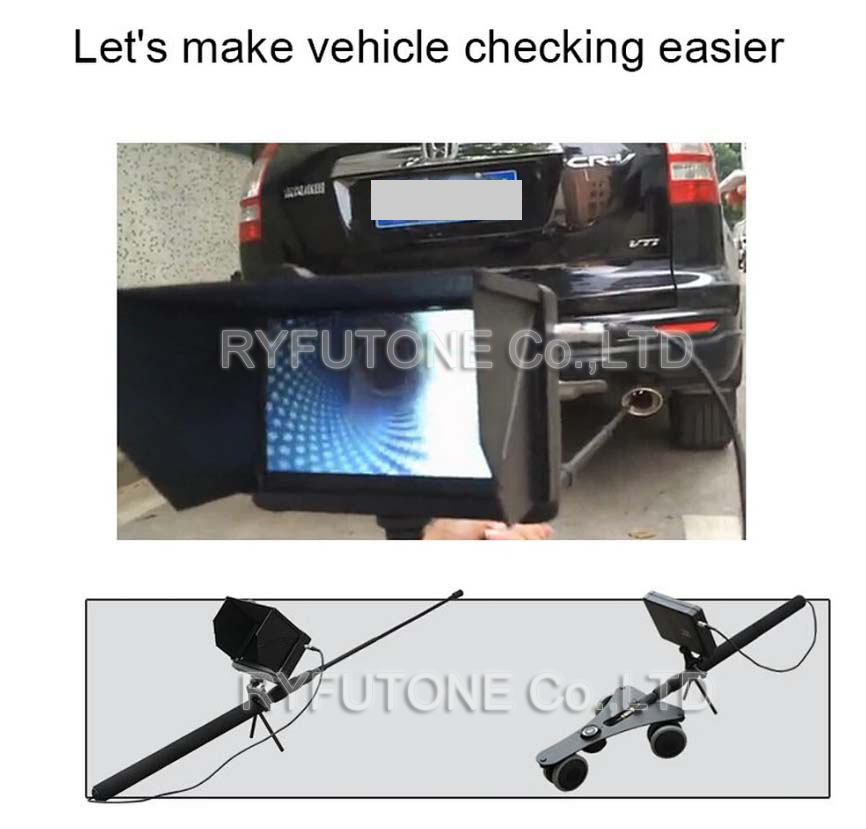

Our portable telescopic pole camera under vehicle inspection system can be used in the airport, wharf, customs, hotels, prisons,restricted zones and so on for checking the security of the bottom of the vehicles.
It is also suitable for checking if there are explosives under the cars which park in the stadium, station, cinema, theater, large factories, venue and so on.
under vehicle inspection camera
Optical Element
1/2.5 CMOS Sensor SONY
Optical Total Pixels
5.0MP:3200(H)¡Á1800(V)
CMOS Sensor Size
5.6mm(H)¡Á3.14mm(V)
Sensitivity
0.08Lux/F1.2
Light source
6pcs LED/ IR lamps controlled on DVR
Lens & View angle
3.6mm F1.2 (H )105 ¡ã
HD Video Output Interface
FPD-Link¢ó
Data cable
Diameter:5mm Length:3m
Dimension & Weight
38/48.5x 44mm, 73g(only camera)
Wheels on the tray
Omni-directional wheel
vehicle surveillance system
Optical Element
1/3 CMOS Sensor
Optical Total Pixels
5.0Mega:3200(H)¡Á1800(V)
CMOS Sensor Size
5.07mm(H)¡Á3.38mm(V)
Light source
6 pcs LED lamps hight light
Sensitivity
0.2Lux/F1.2
Lens & View angle
0.5mm F1.2 90 ¡ã
HD Video Output Interface
FPD-Link¢ó
Dimension & Weight
19.5 x 28mm
Cable(5Cores High-Speed Line)
Diameter:5mm Length:3meters
Flexible pipe lenth
25cm soft metal pipe,123g
Telescopic Pole
Length
Constriction Length:58cm;Unfolded Length:188cm
7 inch DVR with Screen
HD Video Output
HDMI:1920* 1080;1280*720
Video Storage Pixels(16:9)
HDMI:1920* 1080;1280*720
Video Compression Format
H.264
Video compress
AVI
HD Digital Video Input Interface
FPD-Link¢ó
Photo Format
JPG 5.0MP:3200(H)¡Á1800(V)
Storage External SD card
TF card 1GB-64GB(Optional)
Operating system
Windows & Mac OS
Port
HDMI, USB2.0
Language
Multiple
Current&Voltage
700mA Video mode;600mA Monitor mode / DC 12V 2A
Built-in battery
Rechargeable Li-battery 7500mAh
Standby time
¡Ý8 hours
DVR Size&Weight
177mm x120mm x 20mm /350g
Package Contents
1*7 inch Digital DVR with sunshade;
1* wheel tray camera
1* mini flexible tube camera
1* 2m telescopic pole
1* USB cable
