Watec WAT-241 CS Interface 450TVL BLC Color 1/4 CCD Camera

The fully adjustable WATEC WAT-241 color camera provides high resolution images and access to stage the camera in any application of your choice at a low cost. The WATEC WAT-241 utilizes WATEC's Vivid technology and charges the user with the ability to adjust every standard setting of the camera. For more information see the Active Visual Mate(AVM)

Watec WAT-241 Features:

*  Compact and lightweight, reasonably priced;
*  Function can be set as required, using active vision Couples (optional);
*  White balance control;
*  Electronic Iris;
*  Electronic shutter;
*  AGC;
*  Backlight compensation;
*  Video / DC iris automatically selected.

Watec WAT-241 Specifications:

Model		WAT-241(NTSC)	WAT-241(PAL)
image sensor		1/4" CCD
Total pixels		811(H)*507(V)	795(H)*595(V)
Effective Pixels		768(H)*494(V)	752(H)*582(V)
Pixel Size		4.9um(H)*5.6um(V)	5.0um(H)*4.7um(V)
Imaging system		Ye, Cy, Mg, and G complementary color mosaic filters on chip
Synchronizing System		Internal Synchronization
Scanning system		2:1
video output		synthesize, 1Vpp-75Ω ,imbalance
Resolution (horizontal)		450Lines(Center)
Minimum illumination		0.6Lux F1.2
Gain control		Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
S/N ratio		>50dB(AGC=6dB，γ= 1.0)
AE Mode	Fixed	1/60sec.	1/50sec.
	EI	1/60-1/100000sec.	1/50-1/100000 sec.
BLC		ON
Automatic gain control		6-30dB
Gamma characteristics		γ≒0.45
WB		ATW (2500K-9500K)
Lens		Video /DC（EIAJ arrangement,Auto-select）
Mount		CS
Working Voltage		DC+12V±10%
power consumption		0.96W(80mA)
Storage Temperature (℃ )		-30~+70(Frost-free knot)
Operating Temperature (℃ )		-10~+40(Frost-free knot)
Work/storage humidity		Less than 95% RH (frost-free knot)

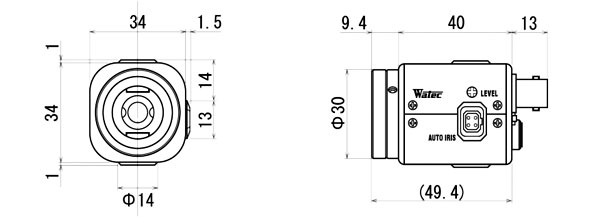

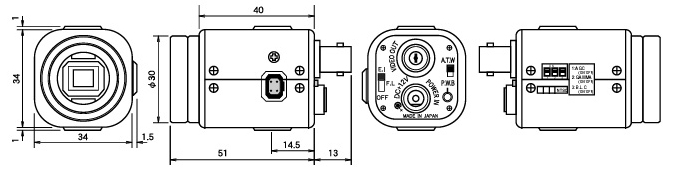

Size W×H×L(mm)		45.5×36×64
Weight(G)		82
