Watec WAT-3200 Full HD 1/2.8-inch High Sensitivity 3G/HD-SDI B&W Cameras

Watec WAT-3200 Full HD 1/2.8-inch High Sensitivity 3G/HD-SDI B&W Cameras



Excellent camera for security, surveillance, machine vision, medical imaging and so much more.

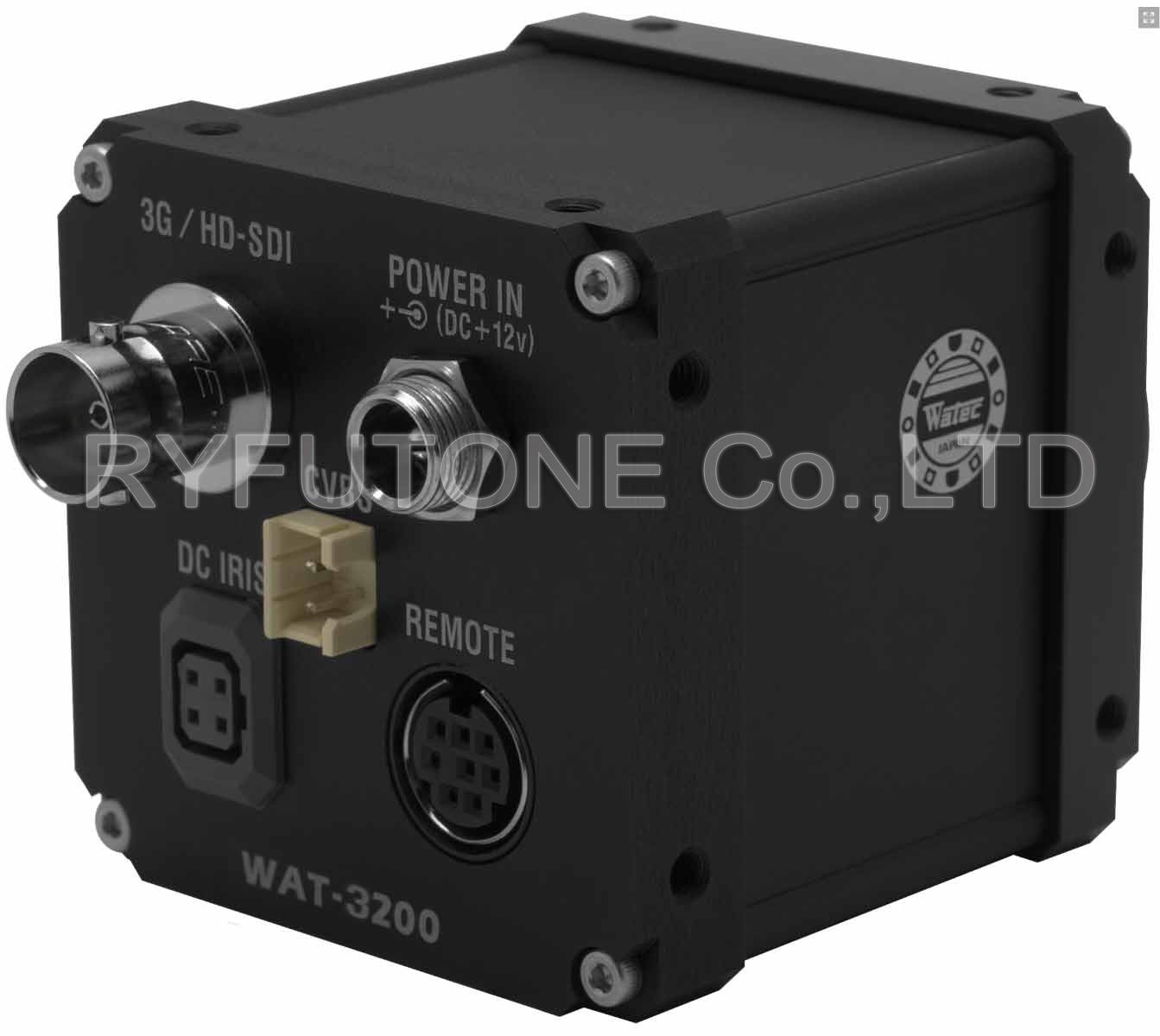

The Watec WAT-3200 is a high-sensitivity monochrome camera engineered for precision imaging in extreme low-light environments. Featuring a 1/2.8-inch BSI CMOS sensor, it delivers Full HD 1080/60p resolution with remarkable detail and clarity. With a minimum illumination of 0.000007 lx, it captures sharp, noise-controlled images in near-dark conditions, making it a trusted tool for industrial inspection, scientific research, and specialized surveillance applications.

Built with Watec's advanced imaging technology, the WAT-3200 ensures minimal latency through its 3G/HD-SDI output and comprehensive image control, including 3D/2D noise reduction, WDR, and adjustable gamma profiles. RS-232 and OSD remote configuration options provide full integration flexibility, while its compact, lightweight CS-mount design supports seamless installation across professional imaging systems.

Features:
* 1/2.8-inch BSI CMOS sensor for superior light sensitivity
* Full HD 1080/60p output with 3G/HD-SDI interface
* Ultra-low-light performance: 0.000007 lx minimum illumination
* Adjustable 3D/2D noise reduction, WDR, and defog function
* RS-232 control (Pelco-D/P, VISCA) for remote configuration
* Compact CS-mount body, lightweight at 131G
* Internal synchronization and progressive scan output
* Privacy masking, mirror/flip options, motion detection
* Operates from -10¡ãC to +50¡ãC, built for reliable field performance

Applications:
* Industrial Inspection
* Broadcast Imaging
* Aerospace Testing
* Security Monitoring
* Low-Light Observation
Specifications:
Sensor type 1/2.8 inch BSI CMOS image sensor
Number of effective pixels 1945(H) x 1097(V)
Unit cell size 2.9µm(H) x 2.9µm(V)
Imaging System RGB primary color bayer arrangement mosaic filters on chip
Synchronizing system Internal
Scanning system Progressive
Video Outputs 3G-SDI, HD-SDI, HD-VLC
Composite: 1.0 V (p-p) 75¦¸ (Unbalanced)
Output Format 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 720/60p, 720/59.94p, 720/50p, NTSC, PAL
Resolution More than 1000TVL (Center)
Minimum illumination 0.0001 Ix Fl.4 (AGC HIGH=72dB, Shutter=OFF)
0.000007 Fl.4 (AGC HIGH=72dB, Shutter=xlS)
S/N More than 55dB (AGC OFF=0dB, ¦Ã=1.0)
Function Settings OSD : Remote Controller, RS-232 (Pelco-D, Pelco-P) / Communication: RS-232 (Pelco-D, Pelco-P, Visca)
AE Mode Fixed - x2, x3, x4, xS, x61 x7, xS, x9, xlO, x12, x15 (frame)
1/30, 1/60, 1/120, 1/180, 1/240, 1/300 (sec.) ¡ù1 -- 1/25, 1/50, 1/100, 1/150, 1/200, 1/250 (sec.)¡ù2 -- 1/500, 1/1000, 1/2000, 1/5000, 1/10000 (sec.)
EI - 1/30 - 1/10000 (sec.)¡ù1 -- 1/25 - 1/10000 (sec.)¡ù2
x15 - 1/10000 (sec.)
White Balance -
AGC ON - 0 - 72dB (MAX:0 - 72dB)
OFF - 0 dB
MGC  0 - 72dB (5dB step)
Day/Night -
Gamma Characteristics ¦Ã¨PUSER (Level Adjustable)
Noise Reduction 3DNR OFF/ON Level adjustable, 2DNR OFF/ON Level adjustable, 3D+2DNR ON Level adjustable
Wide Dynamic Range WDR OFF/ON Level adjustable, D-WDR OFF/ON Level adjustable
Lens Iris DC
Back Light Compensation BLC, HSBLC
White Blemish Correction Up to 2046 pixels
Sharpness OFF/ON Level adjustable
Defog OFF/ON Level adjustable
Digital Zoom ZOOM (x1.01 - x6.00), PAN/TILT
Privacy Mask 8 masks
Mirror Image OFF, V-FLIP, H-FLIP, HV-FLIP
Freeze  OFF/ON
Motion Detection OFF/ON 4 areas arbitrarily configurable
Neg. Image OFF/ON
Interface BNC (3G/HD-SDI), 2P Connector (Composite Video), Power In, Auto Iris, Mini DIN8P (RC-02, RS-232)
Power Supply DC+12V ¡À10%
Power Consumption 2.52W (210mA)
Operating Temperature -10¡æ ¡« +50¡æ
Storage Temperature -30¡æ ¡« +70¡æ
Operating/Storage Humidity 95% RH or less (Without condensation)
Lens Mount CS mount
Weight Approx. 131g
Accessories WPDC12-R (DC plug), 2P Cable, Hex. Wrench, Camera bracket, RC-02 (Remote controller)
