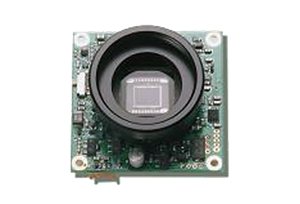

Watec WAT-902HB2S High-Res B/W Board Camera, 1/2" Interline Transfer CCD image sensor, 570 TVL Super High Resolution, 0.0003 Lux @ fl.4 (AGC High), Power Supply: DC +9.0~15V (12V+/-15%), Back light Compensation: ON .
Watec WAT-902HB2S Features:
* Star Ultra low-light monochrome camera 570 lines high-resolution DC / VIDEO dual drive
* Industrial Design specializes in dark environment monitoring
* Matec WAT-902HB2S is a mine-specific camera
* 570 TV Lines Resolution
* Low Light Sensitivity
* Auto Gain Control
* Back Light Compensation
* 1/2" CCD camera with Resolution of 570 TV Lines
* Minimum Illumination: 0.0003 Lux @ fl.4 (AGC High)
* Number of Pixels: EIA: 811 (H) X 508(V); CCIR: 795(H) X 596 (V)
* Pick-Up Element: 1/2" B&W CCD Image Sensor
* S/N Ratio: >46db (AGC OFF)
* Lens Mount: "CS" Mount
* AGC: ON/OFF- High/Low
* Back light Compensation: ON
* Power Supply: DC +9.0~15V (12V+/-15%)
Watec WAT-902HB2S Specifications:
| Model |
WAT-902HB2S (EIA) |
WAT-902HB2S (CCIR) |
| Pick-up element |
1/2 inch interline transfer CCD image senso |
| Number of total pixels |
811(H) x 508(V) |
795(H) x 596(V) |
| Number of effective pixels |
768(H) x 494(V) |
752(H) x 582(V) |
| Unit cell size |
8.4¦Ìm(H) ¡Á 9.8¦Ìm(V) |
8.6¦Ìm(H) ¡Á 8.3¦Ìm(V) |
| Synchronizing system |
Internal |
| Scanning system |
2:1 interlace |
| Video output |
Composite Video, 1Vp-p, 75ohms, unbalanced |
| Resolution (H) |
570TVL (Center) |
| Minimum illumination |
0.0003x F1.4 |
| S/N |
More than 50dB (AGC=10dB,¦Ã=1.0) |
| AE mode |
Fixed |
1/60, 1/100 sec. |
1/50, 1/120 sec. |
| 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec. |
| EI |
1/60 - 1/100000 sec. |
1/50 - 1/100000 sec. |
| AGC |
ON |
HI: 5 - 50dB / LO: 5 - 32dB |
| OFF |
5dB |
| Gamma characteristics |
¦Ã¨P0.45(ON) /¦Ã=1.0(OFF) |
| Lens-iris |
Video (Watec original arrangement) |
| Power supply |
DC+12V¡À10% |
| Power consumption |
1.92W (160mA) |
| Operating temperature |
-10- +40 |
| Storage temperature |
-30- +70 |
| Operating / Storage humidity |
Less than 95% RH (Without condensation) |
| Lens mount |
CS mount |
| Weight |
Approx. 25g |
|
